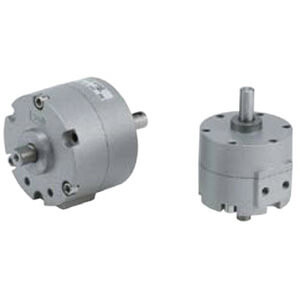

SMC CDRB2FWU15-270SZ-93ALS CRB2 Series Rotary Actuator Vane Type
SMC
$226.35
The SMC CDRB2FWU15-270SZ-93ALS CRB2 Series Rotary Actuator Vane Type is designed for versatile and efficient performance. It allows for flexible auto switch mounting positions and offers direct mounting capabilities. The actuator features selectable connection port positions, including side ported and axial ported options, although side ported is required when a switch and angle adjuster are installed. It operates efficiently at low pressures, with a minimum of 0.2 MPa for Size 10 and 0.15 MPa for Sizes 15 to 40. Additionally, the angle can be adjusted to meet specific requirements, and it comes equipped with an auto switch for enhanced functionality. This actuator is part of the Series CDRB2, including models CDRB2 W and CDRB2 WU, ensuring reliable and adaptable performance for various applications.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Flange
- Shaft Type:
- Double Shaft With Single Flat (Size 10 To 30)
- Angle Adjuster:
- With Angle Adjuster Unit
- Size:
- 15
- Rotating Angle:
- 270°
- Vane Type:
- Single Vane
- Connecting Port:
- Side Ported
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
