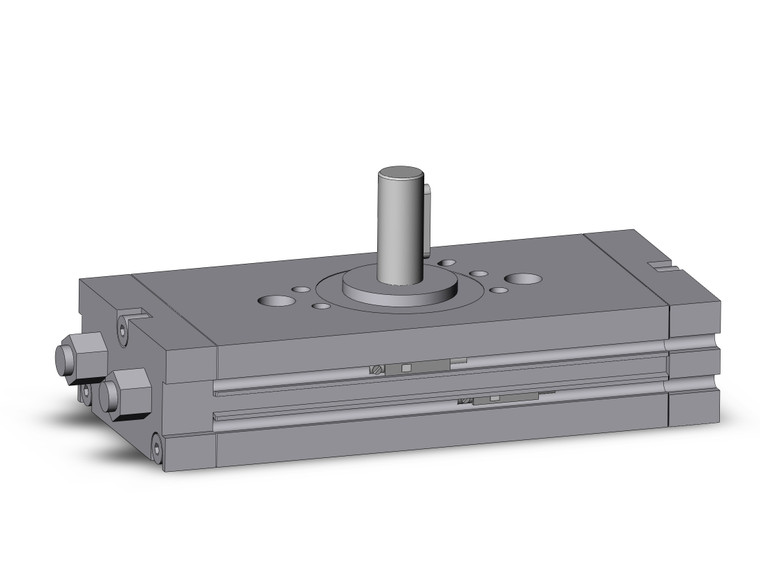

SMC CDRQ2BS30TN-180-A90L Compact Rotary Actuator

SMC CDRQ2BS30TN-180-A90L CRQ2 Series Compact Rotary Actuator Rack & Pinion Type

SMC
SKU:
CDRQ2BS30TN-180-A90L
$350.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CRQ2 Series Compact Rotary Actuator Rack & Pinion Type

  • With cushion;
  • Equipped with an angle adjustment mechanism;
  • Single or double axis selectable;
  • With auto switch (Series CDRQ2: CDRQ2)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Shaft Type:
    Single Shaft
    Patterned sequencing order:
    Standard Product
    Size:
    30
    Port Type:
    NPT1/8
    Rotation Angle:
    170°?190°
    Cushion:
    Without Cushion,Rubber Bumper
    Shaft And Parallel Key Material:
    Standard Type
    Auto Switch:
    Reed Auto Switch, Grommet, 2-wire, In-line, Lead Wire :3m, Apply Voltage :AC/DC24V or Less,AC/DC48V or Less,AC/DC100V or Less
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Female Thread At The End
