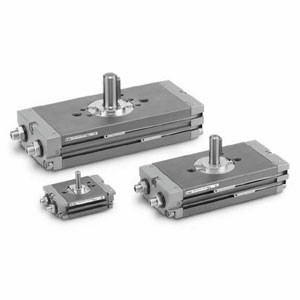

SMC CDRQ2XBS10-180-M9NSAPC CRQ2X Series Low-Speed Compact Rotary Actuator Rack & Pinion Type

SMC CDRQ2XBS10-180-M9NSAPC CRQ2X Series Low-Speed Compact Rotary Actuator Rack & Pinion Type

SMC
SKU:
CDRQ2XBS10-180-M9NSAPC
Availability:
Factory Stock
$304.35
Condition:
New
Current Stock:
Description

CRQ2X Series Low-Speed Compact Rotary Actuator Rack & Pinion Type

  • Possible to transfer a workpiece at lower speeds. (5 s/90º);
  • With auto switch (Series CDRQ2X: CDRQ2X)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Shaft Type:
    Single Shaft
    Patterned sequencing order:
    Standard Product
    Size:
    10
    Port Type:
    M Thread,Rc1/8
    Rotation Angle:
    170°?190°
    Shaft And Parallel Key Material:
    Standard Type
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Female Thread At The End
