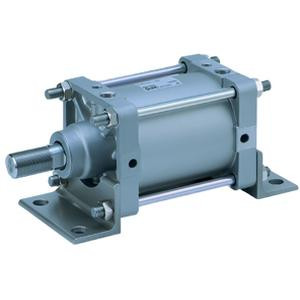

SMC CDS2B125-50+50-A93L-XC10 CS2 Series Air Cylinder
SMC
$1,049.20
The SMC CDS2B125-50+50-A93L-XC10 CS2 Series Air Cylinder is a versatile and innovative solution for your pneumatic needs. This model introduces new features, including the addition of 320 to the standard type, available in both single and dual rod configurations. It also offers long stroke options ranging from 180 to 320, providing greater flexibility for various applications.
One of the standout features of this air cylinder is its lightweight design, achieving a remarkable weight reduction of up to 65%, from 39.1 kg to just 13.4 kg. Despite its lighter build, it maintains high rigidity, with an impressive allowable lateral load of up to 900 N, ensuring durability and reliability in demanding environments.
The improved ease of piping is another key advantage, with centralized piping ports in the axial direction that enhance piping flexibility. This axial centralized piping type simplifies installation and maintenance, making it an ideal choice for efficient and streamlined operations. Whether you're upgrading existing systems or designing new ones, the SMC CDS2B125-50+50-A93L-XC10 CS2 Series Air Cylinder offers the performance and adaptability you need.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic
- Bore Size:
- Bore Size 125 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 50 mm
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Dual Stroke Mark
- Cylinder Stroke 2:
- Standard Stroke 50 mm
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Dual Stroke Cylinder/Double Rod Type
