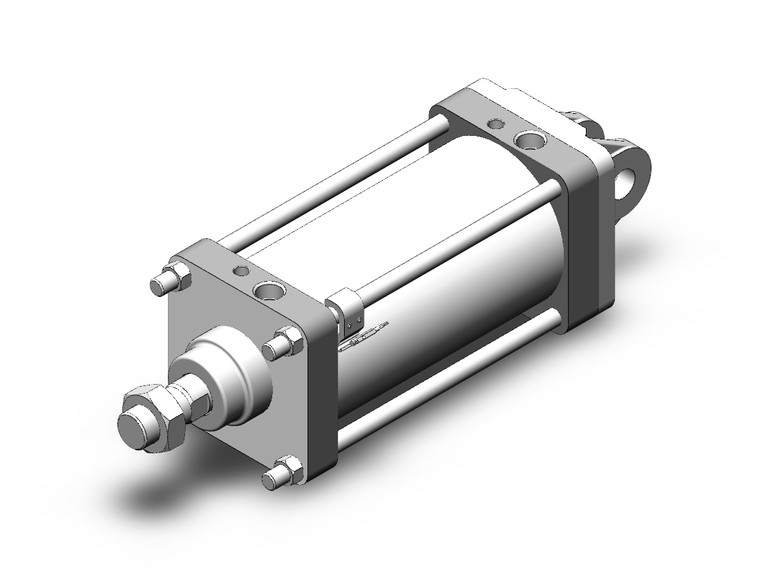

SMC CDS2D125TN-200-A90LS CS2 Series Air Cylinder
SMC
$474.40
The SMC CDS2D125TN-200-A90LS CS2 Series Air Cylinder is a cutting-edge solution designed to enhance your pneumatic systems. This advanced air cylinder now includes a new addition of 320 to the standard type, available in both single rod and dual rod configurations. Experience the benefits of long stroke capabilities ranging from 180 to 320, providing greater versatility for your applications.
Engineered for efficiency, this air cylinder is remarkably lightweight, with a weight reduction of up to 65%, bringing it down from 39.1 kg to just 13.4 kg. Despite its reduced weight, it maintains high rigidity, supporting an impressive maximum allowable lateral load of 900 N.
The design also focuses on improved ease of piping, featuring centralized piping ports in the axial direction. This innovation increases piping flexibility, making installation and maintenance more straightforward and efficient. Choose the SMC CDS2D125TN-200-A90LS for a reliable, high-performance air cylinder that meets the demands of modern industrial environments.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Double Clevis Style
- Bore Size:
- Bore Size 125 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 200 mm
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- Reed Auto Switch, Grommet, 2-wire, In-line, Lead Wire :3m, Apply Voltage :AC/DC24V or Less,AC/DC48V or Less,AC/DC100V or Less
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
