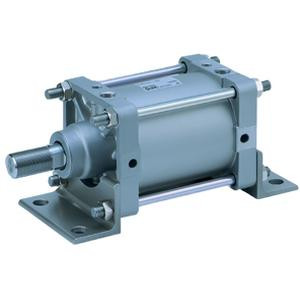

SMC CDS2F125-1250-A59WLS CS2 Series Air Cylinder
SMC
$862.80
The SMC CDS2F125-1250-A59WLS CS2 Series Air Cylinder is a cutting-edge solution designed to enhance your pneumatic systems. This model introduces a range of new features, including the addition of 320 to the standard type, available in both single rod and dual rod configurations. It also offers long stroke options ranging from 180 to 320, catering to diverse application needs.
Engineered for efficiency, this air cylinder is remarkably lightweight, with a weight reduction of up to 65%, bringing it down from 39.1 kg to just 13.4 kg. Despite its reduced weight, it maintains high rigidity, supporting an impressive allowable lateral load of up to 900 N.
The design also focuses on improved ease of piping, featuring centralized piping ports in the axial direction. This innovation enhances piping flexibility, making installation and maintenance more convenient. The axial centralized piping type ensures streamlined operations, making the SMC CDS2F125-1250-A59WLS an ideal choice for modern pneumatic applications.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Side Flange Style
- Bore Size:
- Bore Size 125 mm
- Port Thread Type:
- Rc
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- 2-color Indicator, Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
