SMC CDS2F140-500-M9PWSDPC3 tie rod cylinder cylinder, tie rod, cs2

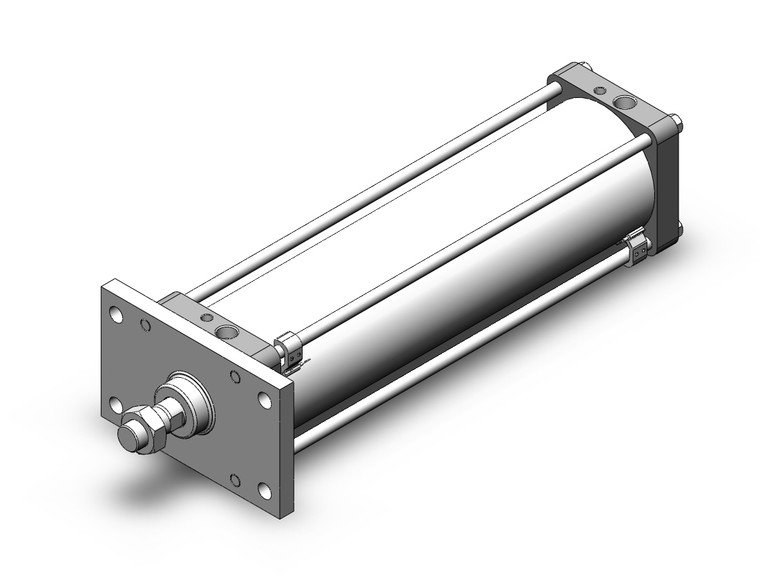

SMC CDS2F140-500-M9PWSDPC3 CS2 Series Air Cylinder

SMC
SKU:
CDS2F140-500-M9PWSDPC3
Availability:
Contact us to confirm availability and lead times.
$802.35
Condition:
New
Current Stock:
Description

CS2 Series Air Cylinder

  • 320 to the standard type (single rod, both rods) have been added [New];
  • Long stroke ( 180- 320) have been added [New];
  • Lightweight: Weight reduced by up to 65% (39.1 kg 13.4 kg);
  • High rigidity (Allowable lateral load: Max. 900 N);
  • Improved ease of piping:; Centralized piping ports in the axial direction increase piping flexibility; (Axial centralized piping type)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Flange Style
    Bore Size:
    Bore Size 140 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 500 mm
    Suffix For Cylinder:
    Without Rod Boot,Both Ends
    Stroke Adjustment Symbol:
    None
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    Without Rod Boot,Both Ends
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    3 Pcs.
    Made To Order:
    Standard
