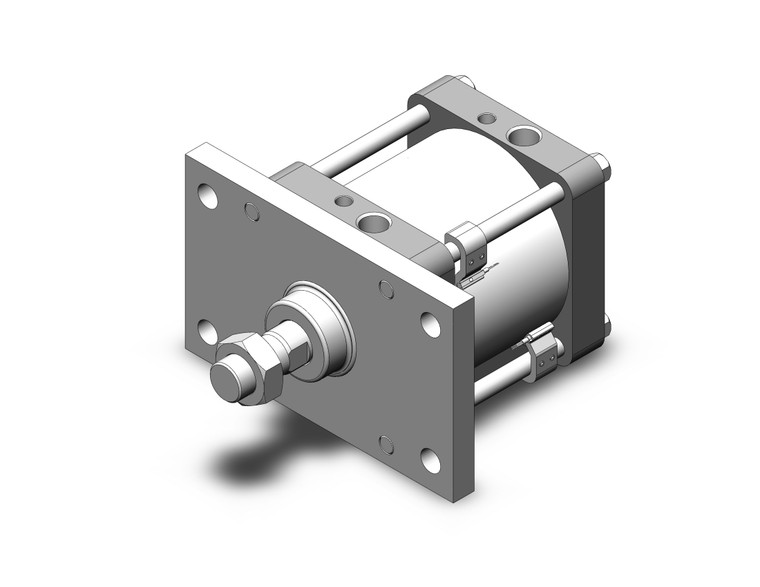

SMC CDS2F140TF-75-M9PSDPC CS2 Series Air Cylinder
SMC
$566.40
The SMC CDS2F140TF-75-M9PSDPC CS2 Series Air Cylinder is a cutting-edge solution designed to meet the demands of modern industrial applications. This advanced air cylinder features several enhancements, including the addition of 320 to the standard type, available in both single rod and dual rod configurations. New long stroke options ranging from 180 to 320 have also been introduced, providing greater versatility for various applications.
One of the standout features of this air cylinder is its lightweight design, achieving a remarkable weight reduction of up to 65%, from 39.1 kg to just 13.4 kg. Despite its reduced weight, the cylinder maintains high rigidity, with an impressive allowable lateral load capacity of up to 900 N, ensuring reliable performance under demanding conditions.
The SMC CDS2F140TF-75-M9PSDPC also offers improved ease of piping, thanks to its centralized piping ports in the axial direction. This design innovation enhances piping flexibility, making installation and maintenance more efficient and straightforward. Whether you're upgrading existing systems or designing new ones, this air cylinder provides the performance and adaptability needed for optimal operation.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Side Flange Style
- Bore Size:
- Bore Size 140 mm
- Port Thread Type:
- G
- Cylinder Stroke:
- Standard Stroke 75 mm
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
