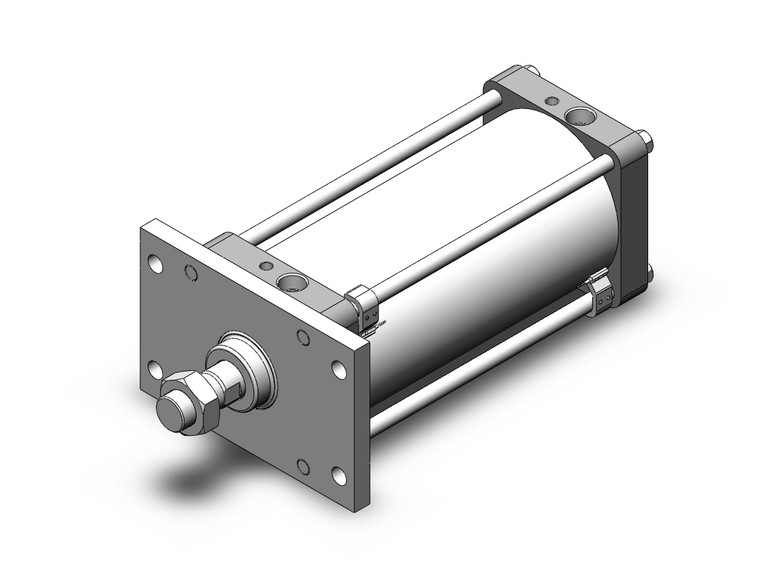

SMC CDS2F160-300-A90L CS2 Series Air Cylinder
SMC
$697.80
The SMC CDS2F160-300-A90L CS2 Series Air Cylinder is a cutting-edge solution designed to enhance your pneumatic systems. This model introduces new features, including the addition of 320 to the standard type, available in both single rod and dual rod configurations. It also offers long stroke options ranging from 180 to 320, catering to a variety of applications.
Engineered for efficiency, this air cylinder is remarkably lightweight, with a weight reduction of up to 65%, bringing it down from 39.1 kg to just 13.4 kg. Despite its reduced weight, it maintains high rigidity, supporting an impressive allowable lateral load of up to 900 N.
The design also focuses on improved ease of piping, featuring centralized piping ports in the axial direction. This innovation enhances piping flexibility, making installation and maintenance more convenient. The SMC CDS2F160-300-A90L is an ideal choice for those seeking a reliable, high-performance air cylinder with advanced features and superior adaptability.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Side Flange Style
- Bore Size:
- Bore Size 160 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 300 mm
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- Reed Auto Switch, Grommet, 2-wire, In-line, Lead Wire :3m, Apply Voltage :AC/DC24V or Less,AC/DC48V or Less,AC/DC100V or Less
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
