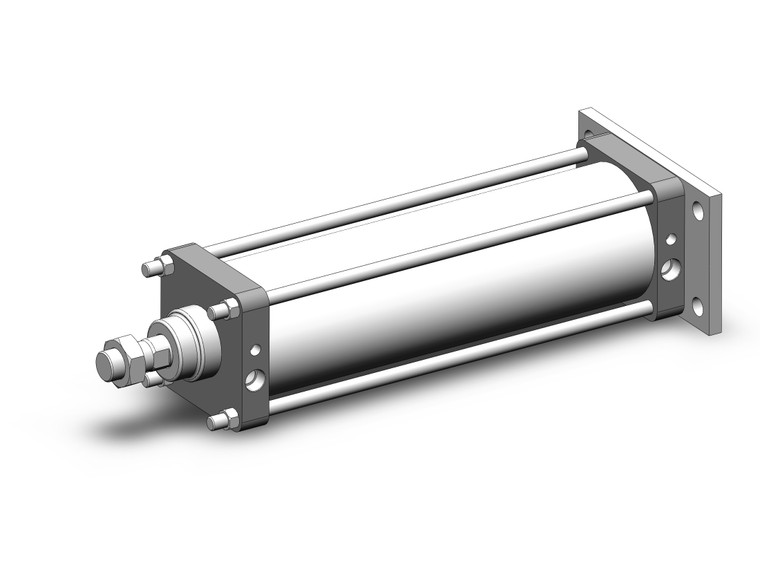

SMC CDS2G125-400-XC3BB CS2 Series Air Cylinder
SMC
$613.25
The SMC CDS2G125-400-XC3BB CS2 Series Air Cylinder is a cutting-edge solution designed to enhance your pneumatic systems. This advanced air cylinder features a range of new additions, including the expansion of the standard type to 320 for both single and dual rod configurations, as well as the introduction of long stroke options ranging from 180 to 320. Experience significant weight reduction, with the cylinder's weight decreased by up to 65%, from 39.1 kg to just 13.4 kg, without compromising on performance. The high rigidity of the cylinder allows for a maximum lateral load of 900 N, ensuring robust and reliable operation. Additionally, the improved ease of piping is achieved through centralized piping ports in the axial direction, offering increased flexibility and convenience in your piping arrangements. This air cylinder is engineered to meet the demands of modern industrial applications, providing both efficiency and durability.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Head Flange Style
- Bore Size:
- Bore Size 125 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 400 mm
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Special Port Location:Rod Port Location Seen From The Rod Side:B
