SMC CDS2YF160TN-200-M9PWSDPCS tie rod cylinder cylinder, tie rod, cs2

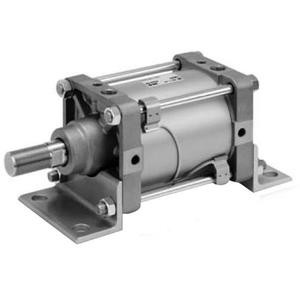

SMC CDS2YF160TN-200-M9PWSDPCS CS2Y Series Smooth Cylinder

SMC
SKU:
CDS2YF160TN-200-M9PWSDPCS
Availability:
Contact us to confirm availability and lead times.
$733.00
Condition:
New
Current Stock:
Description

CS2Y Series Smooth Cylinder

  • Reducing stick-slip in a low speed range;
  • Stable operation possible even at a low speed of 5 mm/s (Measurement ; based on JIS B 8377);
  • Low sliding possible even in bi-directional operation;
  • Lightweight/Improved functions (New structure equivalent to the standard ; models);
  • Interchangeable with the standard models;
  • With auto switch(Series CDJ2Y-Z CDJ2Y, Series CDM2Y-Z CDM2Y-Z, ; Series CDG1Y-Z CDG1Y, Series MDBY-Z MDBY, Series CDA2Y-Z ; CDA2Y, Series CDS2Y CDS2Y, Series CDQSY CDQSY, ; Series CDQ2Y-Z CDQ2Y)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Flange Style
    Bore Size:
    Bore Size 160 mm
    Port Thread Type:
    NPT
    Cylinder Stroke:
    Standard Stroke 200 mm
    Suffix For Cylinder:
    Without Cushion
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
