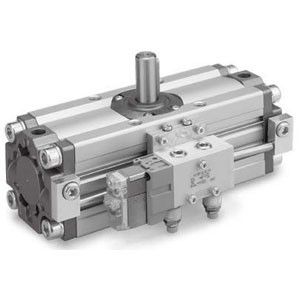

SMC CDVRA1LS50-180Z-21TZ CVRA1-Z Series Rotary Actuator With Solenoid Valve
SMC
$469.45
The SMC CDVRA1LS50-180Z-21TZ CVRA1-Z Series Rotary Actuator with Solenoid Valve is engineered for precision and efficiency. This advanced actuator features compact auto switches (D-M9 type) that can be mounted on two surfaces, allowing for versatile installation options. The auto switch is conveniently mountable from the front, enhancing accessibility and ease of use. Designed with a focus on weight reduction, this actuator is up to 14% lighter, making it ideal for applications where weight is a critical factor. It includes an air cushion for smooth operation and allows for easy adjustment of the cushion valve, ensuring optimal performance. Additionally, the actuator is equipped with an auto switch, compatible with Series CRA1 models such as CDRA1, CDRA1U-Z, and CDVRA1, providing seamless integration into existing systems.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Solenoid Valve:
- With Solenoid Valve
- Mounting Style:
- Foot Tyle
- Shaft Type:
- Single Shaft
- Type:
- Standard Type
- Size:
- Size 50
- Rotation Angle:
- 180°
- Cushion:
- None
- Type Of Actuation:
- 2 Position Double
- Rated Voltage:
- 100 VAC
- Electrical Entry:
- Conduit Terminal
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Push-turn Locking Type
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
