<h2>C(D)G1-Z, Double Acting, Single Rod, Air Cylinder, w/X Options</h2><p><h3>Series CG1 single rod, double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminum to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Various mounting bracket options are available. Female piston rod threads are available as a standard option. Auto switch capable.</h3>- femalee rod end available as standard.<br>- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 <br>- Easy fine adjustment of auto switch position<br>- No trunnion mounting femalee thread<br>- Various mounting bracket options<p><a href="https://content2.smcetech.com/pdf/CG1_Z.pdf" target="_blank">Series Catalog</a>

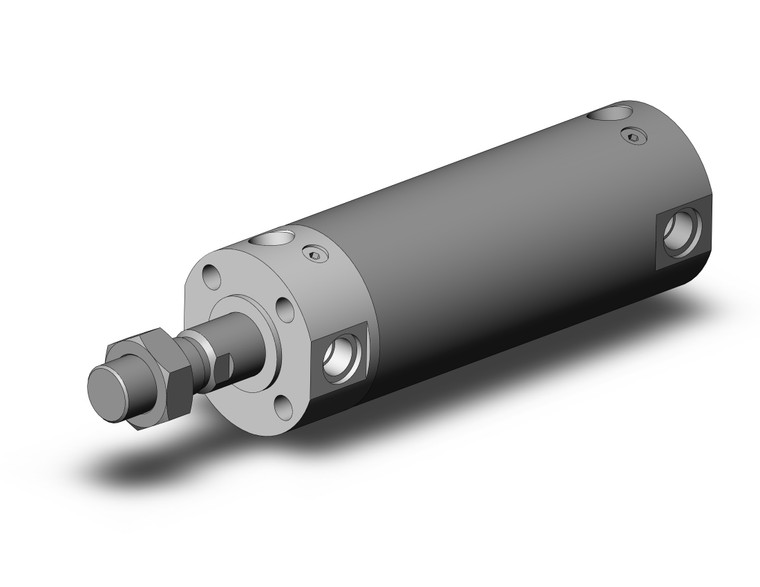

SMC CG1BA50-75Z Air Cylinder, Double Acting, Single Rod, 50mm Bore, 75mm Stroke

SMC
SKU:
CG1BA50-75Z
Availability:
Factory Stock
$102.75
Condition:
New
Current Stock:
Description
The SMC CG1BA50-75Z CG1 Cylinder is a robust and versatile solution for pneumatic applications, designed to meet the rigorous demands of modern engineering and manufacturing environments. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its precision and reliability. Engineered with an impact extruded aluminum tube, the CG1BA50-75Z ensures an exceptionally smooth internal finish, facilitating low break-away pressure and seamless stroke action. This feature is critical for applications requiring precise control and efficiency. The cylinder is available in eight bore sizes, ranging from 20mm to 100mm, making it adaptable to a wide array of industrial needs. The CG1BA50-75Z is equipped with female piston rod threads as a standard option, enhancing its versatility in various setups. It supports easy fine adjustment of the auto switch position, allowing for precise customization and integration into existing systems. The absence of trunnion mounting female threads further simplifies installation and maintenance. For enhanced adaptability, the cylinder offers various mounting bracket options, ensuring compatibility with diverse application requirements. Additionally, the auto switch capability provides advanced control and monitoring, essential for automated systems. Engineers and manufacturing professionals will appreciate the detailed technical documentation available, including a comprehensive series catalog and an AutoCAD file for seamless integration into design workflows. Explore the full potential of the SMC CG1BA50-75Z CG1 Cylinder by accessing the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf) and downloading the [AutoCAD File](https://models.smcetech.com/CG1BA50-75Z/dl3d/step/AP214/CG1BA50-75Z.step.zip) for precise engineering applications.
