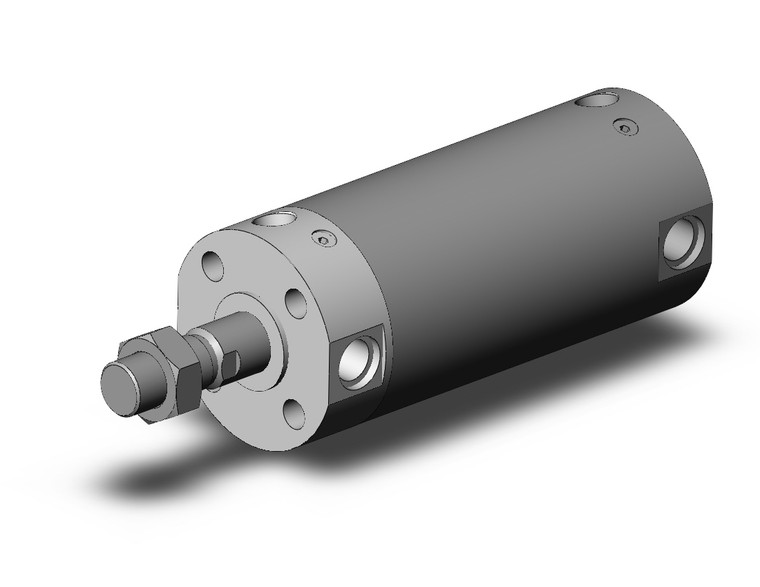

SMC CG1BA63-75Z Air Cylinder, 63mm Bore, 75mm Stroke, Double Acting, Single Rod

The SMC CG1BA63-75Z Air Cylinder is engineered for precision and reliability, making it an ideal choice for demanding industrial applications. This double-acting, single rod air cylinder from the CG1 series is designed with versatility in mind, featuring eight bore sizes to accommodate a wide range of operational needs. The impact extruded aluminum tube ensures an exceptionally smooth finish, facilitating low break-away pressure and seamless stroke action, which is critical for maintaining efficiency in automated systems. Key technical specifications include a bore size of 63mm, with the option for female piston rod threads as a standard feature, enhancing compatibility with various system configurations. The cylinder is auto switch capable, allowing for easy integration into automated processes, and offers fine adjustment of the auto switch position to ensure precise control. Engineers will appreciate the diverse mounting bracket options available, which provide flexibility in installation and application. The absence of trunnion mounting female threads further simplifies the setup process. For detailed technical information, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf) and access the [AutoCAD File](https://models.smcetech.com/CG1BA63-75Z/dl3d/step/AP214/CG1BA63-75Z.step.zip) for integration into your design schematics. Optimize your pneumatic systems with the SMC CG1BA63-75Z Air Cylinder, a robust solution engineered for high performance and adaptability in industrial environments.
