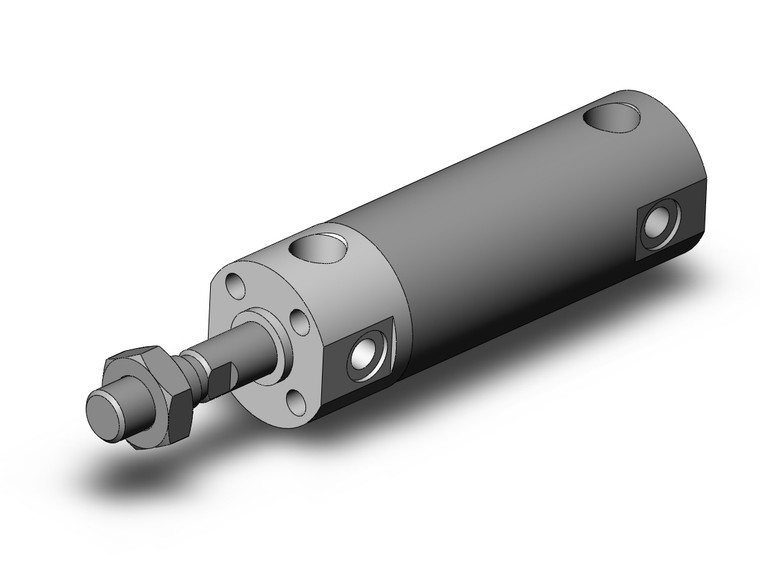

SMC CG1BN25-25Z Air Cylinder, 25mm Bore, 25mm Stroke, Double Acting, Single Rod

The SMC CG1BN25-25Z CG1 Cylinder is a robust and versatile solution for pneumatic applications, designed to meet the rigorous demands of engineering and manufacturing environments. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its precision and reliability. Engineered with an impact extruded aluminum tube, the CG1BN25-25Z ensures an exceptionally smooth internal finish, facilitating low break-away pressure and seamless stroke action. This feature is critical for applications requiring precise control and efficiency. The cylinder is available in eight bore sizes, including 25mm, making it adaptable to a wide range of industrial needs. Key technical specifications include: - Bore Size: 25mm - Female piston rod threads as a standard option - Auto switch capability for enhanced operational flexibility - Various mounting bracket options to suit diverse installation requirements - Easy fine adjustment of the auto switch position, ensuring optimal performance The absence of a trunnion mounting female thread further simplifies installation, while the availability of multiple mounting options enhances its adaptability in complex setups. Engineers will appreciate the ease of integration and the performance reliability that the CG1BN25-25Z offers. For detailed technical specifications and installation guidance, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). Additionally, an [AutoCAD File](https://models.smcetech.com/CG1BN25-25Z/dl3d/step/AP214/CG1BN25-25Z.step.zip) is available for precise design and planning. Optimize your pneumatic systems with the SMC CG1BN25-25Z, a cylinder that combines advanced engineering with practical functionality, ensuring superior performance in demanding industrial applications.
