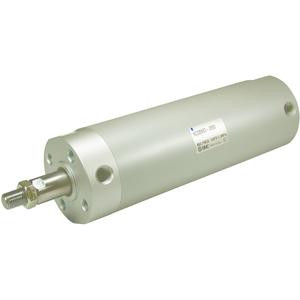

SMC CG1BN32-125 CG1 Series Air Cylinder

SMC CG1BN32-125 CG1 Series Air Cylinder

SMC
SKU:
CG1BN32-125
Availability:
Factory stock
$46.90
Condition:
New
Current Stock:
Description

CG1 Series Air Cylinder

  • Reduces the total length and weight by integrating the head cover;?and tube;
  • With auto switch (Series CDG1: CDG1, CDG1W, CDG1K, CDG1KW,;?CDG1R, CDG1KR, CDG1 Q, CDBG1);;?Production of the series CG1 will be discontinued in October 2013;?(Except Direct mount, Non-rotating rod: CG1KR, With end lock: CBG1);?Please select the series CG1-Z
    • Additional Information
    With Auto Switch(Built-in Magnet):
    Without Auto Switch
    Mounting Style:
    Basic Style
    Type:
    Rubber Bumper
    Bore Size:
    Bore Size 32 mm
    Port Thread Type:
    Rubber Bumper:Rc(20-100), Air Cushion:M5X0.8(2025), Rc(32-100)
    Cylinder Stroke:
    Standard Stroke 125 mm
    Stroke Adjustment Symbol:
    None
    Suffix For Cylinder:
    Without Rod Boot
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    Without Rod Boot
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Bracket:
    None
    Made To Order:
    Standard
