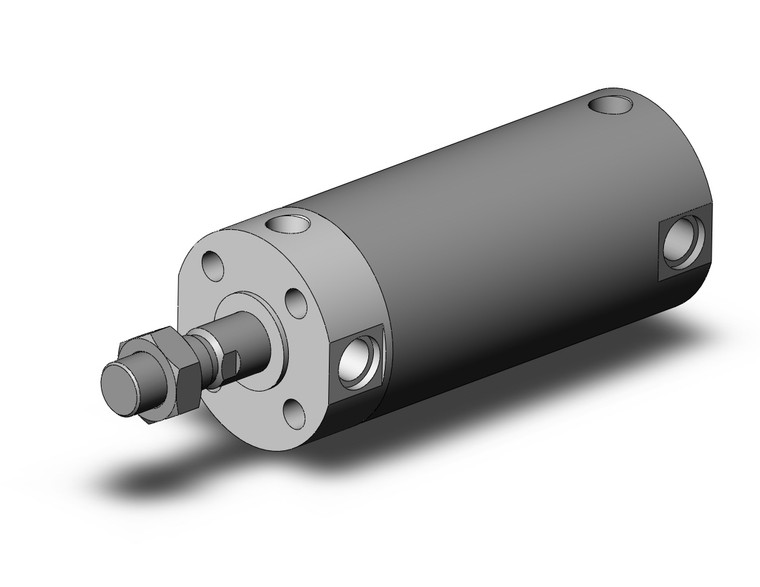

SMC CG1BN63-75Z Air Cylinder, Double Acting, Single Rod, 63mm Bore, 75mm Stroke

The SMC CG1BN63-75Z CG1 Cylinder is a robust and versatile solution for pneumatic applications, designed to meet the rigorous demands of modern engineering and manufacturing environments. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its precision and reliability. Engineered with an impact extruded aluminum tube, the CG1BN63-75Z ensures an exceptionally smooth internal finish, facilitating low break-away pressure and seamless stroke action. This feature is critical for applications requiring precise control and efficiency. The cylinder is available in eight bore sizes, ranging from 20mm to 100mm, with the 63mm bore size being a popular choice for its balance of power and compactness. The CG1BN63-75Z is equipped with female piston rod threads as a standard feature, enhancing its adaptability to various mounting configurations. Engineers will appreciate the ease of fine-tuning the auto switch position, a feature that optimizes operational efficiency and reduces setup time. The absence of trunnion mounting female threads further simplifies installation, making it a preferred choice for streamlined assembly processes. For those requiring customization, the CG1BN63-75Z offers a range of mounting bracket options, ensuring compatibility with diverse application requirements. Its auto switch capability adds an extra layer of functionality, allowing for enhanced automation and control in complex systems. For detailed specifications and integration guidance, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf) and access the [AutoCAD File](https://models.smcetech.com/CG1BN63-75Z/dl3d/step/AP214/CG1BN63-75Z.step.zip) for precise modeling and design planning. The SMC CG1BN63-75Z CG1 Cylinder is the epitome of engineering excellence, offering unparalleled performance and adaptability for your pneumatic system needs.
