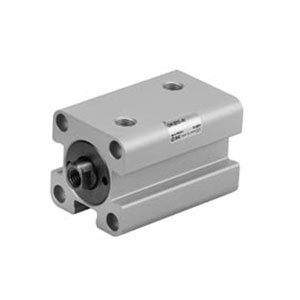

SMC CHDKGB40-100-Z73L CHKG Series Compact Hydraulic Cylinder
SMC
$262.55
The SMC CHDKGB40-100-Z73L CHKG Series Compact Hydraulic Cylinder is engineered for efficiency and versatility. Featuring a lightweight, compact aluminum body, this hydraulic cylinder is designed to meet the demands of various industrial applications. It offers the flexibility to mount auto switches, ensuring seamless integration into automated systems. The cylinder maintains consistent longitudinal dimensions whether equipped with auto switches or not, providing uniformity and ease of installation. Conforming to the JIS Standard, this model is part of the CHKD series, specifically the CHDK variant, which includes options like CHDKD and CHDKG. Ideal for those seeking reliable performance in a compact form factor.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Rod End Thread:
- Rod End Female Thread
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
