SMC CHDQWB50-20D Hydraulic Cylinder, Ch, Cc, Hc

(No reviews yet) Write a Review
SKU:
CHDQWB50-20D
MPN:
CHDQWB50-20D
Condition:
New

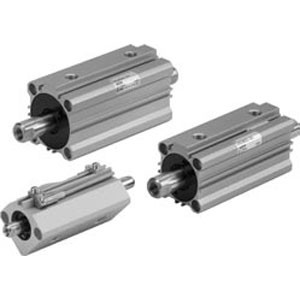

  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
  • SMC CHDQWB50-20D compact hydraulic cylinder
$130.05

Description

CH(D)Q, Compact Type, Low Pressure Hydraulic Cylinder, Double Acting, Double Rod

CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
-

- Compact hydraulic, double acting double rod cylinder
- Bore sizes (mm): 20, 32, 40, 50, 63, 80, 100
- Stroke (mm): 5 to 100
- 3.5 Mpa with short overall length
- Auto switch capable

Series Catalog

AutoCAD File
