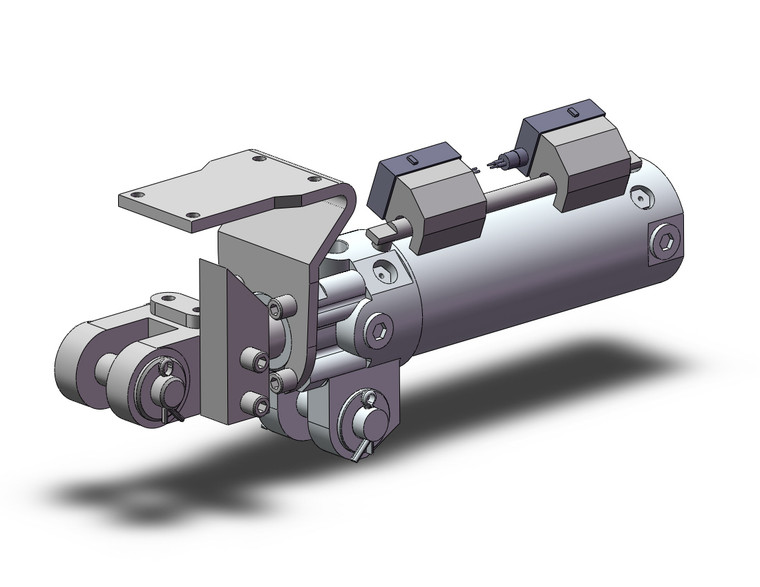

SMC CKP1A40-75YABDZ-P74L clamp cylinder clamp cylinder

SMC CKP1A40-75YABDZ-P74L CKG1-Z/CKP1-Z Series Clamp Cylinder With Magnetic Field Resistant Auto Switch Rod Mounting Style

SMC
SKU:
CKP1A40-75YABDZ-P74L
Availability:
Contact us to confirm availability and lead times.
$411.40
Condition:
New
Current Stock:
Description

CKG1-Z/CKP1-Z Series Clamp Cylinder With Magnetic Field Resistant Auto Switch Rod Mounting Style

  • Total tube length reduced by 7 mm (for CKP1m40);
  • Easy fine speed adjustment with screw adjustment construction;
  • Speed controller valve has no projection from the tube’s external surface;
  • It is possible to mount magnetic field resistant auto switches from 3 directions; D-P3DW type, D-P4DW type (CKG1); D-P79WSE type, D-P74L/Z type;
  • Can be used as a spatter resistant cylinder for arc welding ; (-XC88/-XC89/-XC91) (CKG1 only)
    • Additional Information
    Type:
    Built-In Strong Magnet Type With Magnetic Field Resistant Auto Switch
    Clevis Width:
    16.5 mm
    Bore Size:
    40 mm
    Thread Type:
    Rc1/4
    Cylinder Stroke:
    Standard Stroke 75 mm
    Cylinder Stroke:
    Double Knuckle Joint M6 With Tap
    Option:
    Limit Switch Mounting Base+Dog Fitting
    Auto Switch:
    Magnetic Field Resistant, Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
