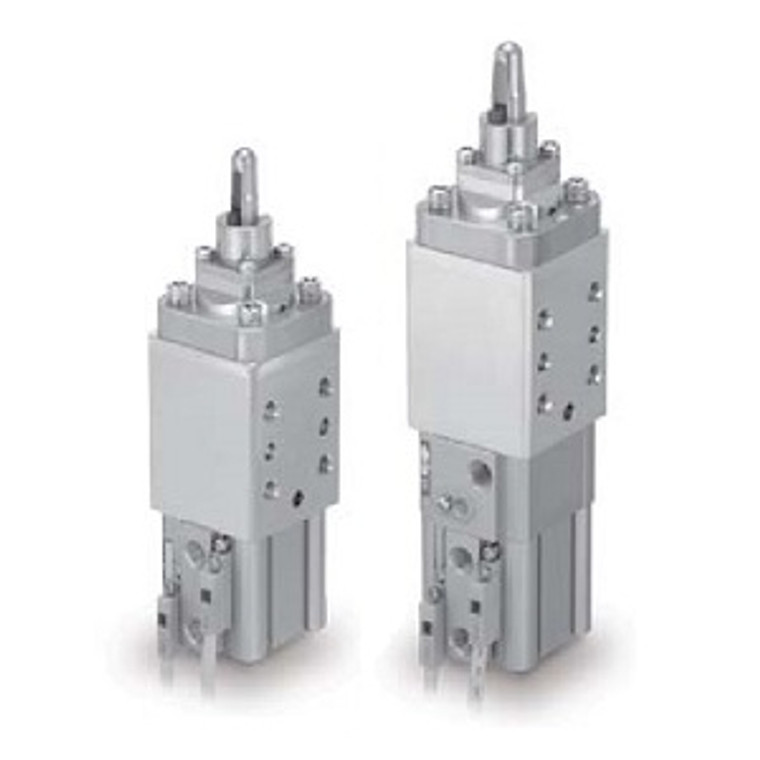

SMC CKQGC32-098RAL-M9PAVSDPCS-X2081 C(L)KQG32 Series Pin Clamp Cylinder Compact Cylinder Type Clamping Height LOW Type

SMC CKQGC32-098RAL-M9PAVSDPCS-X2081 C(L)KQG32 Series Pin Clamp Cylinder Compact Cylinder Type Clamping Height LOW Type

SMC
SKU:
CKQGC32-098RAL-M9PAVSDPCS-X2081
$593.25
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

C(L)KQG32 Series Pin Clamp Cylinder Compact Cylinder Type Clamping Height LOW Type

  • 2 types of clamping heights can be selected. : 30mm, 100mm;
  • Plate cylinder type: 29 mm width;
  • All types with lock;
  • Plate cylinder type with small auto switch;
  • Newly added guide pins and a diamond shape option (available for;??10 or more) for workpieces with ?9, ?11 and ?13 hole diameters.
    • Additional Information
    With Lock:
    Without Lock
    Mounting Surface Position:
    180 Deg From The Port Side
    Bore Size:
    Equiv.?32 Piston Area
    Guide Pin Diameter:
    9.8 mm
    Guide Pin Shape:
    Round Type
    Clamp Arm Position:
    Same As The Port Side
    Clamping Height:
    Clamping Height LOW Type
    Auto Switch:
    Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Magnetic Field Resistant Auto Switch/Small Auto Switch Mounting Clamping Height LOW Type
