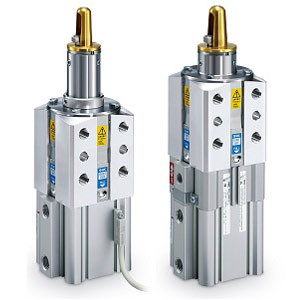

SMC CKQGDA50-148RBLZ C(L)KQG Series Pin Clamp Cylinder Built-in Standard Magnet
SMC
$524.85
The SMC CKQGDA50-148RBLZ C(L)KQG Series Pin Clamp Cylinder is designed with a built-in standard magnet, offering enhanced functionality and versatility. This innovative product features a compact magnetic field resistant auto switch (D-P3DWA), providing new levels of efficiency. It can be mounted on four different surfaces, with the capability to accommodate two auto switches on the same surface, thus improving the flexibility of system design. The protrusion of the auto switch has been reduced by 5 mm, allowing for a more streamlined installation. This cylinder can be mounted directly and offers adjustable height for clamping workpieces securely. With 55 types of guide pins available, it caters to a wide range of applications, making it an ideal choice for various industrial needs.
- With Lock On The Clamp Side:
- Without Lock
- Model:
- Built-in Standard Magnet Type
- Body Shape:
- D Series
- Mounting Surface (Viewed From Top):
- Parallel Side To Port
- Bore Size:
- Bore Size 50 mm
- Thread Type:
- Rc
- Guide Pin Diameter:
- 14.8 mm
- Guide Pin Shape:
- Round Type
- Clamp Arm Position (Clockwise Viewed From Top):
- 90 Deg From The Port Side
- Clamping Height:
- Body Shape D:LOW Type(60 mm)
- Shim:
- Without Shims
- Auto Switch:
- Without Auto Switch (Built-In Magnet)
- Number Of Auto Switches:
- 2 pcs. Or None
