SMC CKU32-160RAL-P3DWASE-X2321 pin plate cylinder cyl, clamp

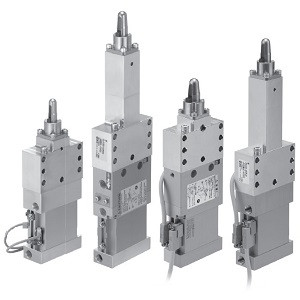

SMC CKU32-160RAL-P3DWASE-X2321 C(L)KU32 Series Pin Clamp Cylinder Small Auto Switch Mounting Plate Cylinder Type Clamping Height LOW Type

SMC
SKU:
CKU32-160RAL-P3DWASE-X2321
$727.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

C(L)KU32 Series Pin Clamp Cylinder Small Auto Switch Mounting Plate Cylinder Type Clamping Height LOW Type

  • 2 types of clamping heights can be selected. : 30mm, 100mm;
  • Plate cylinder type: 29 mm width;
  • All types with lock;
  • Plate cylinder type with small auto switch;
  • Newly added guide pins and a diamond shape option (available for; 10 or more) for workpieces with 9, 11 and 13 hole diameters.
    • Additional Information
    With Lock:
    Without Lock
    Bore Size:
    Equiv. 32 Piston Area
    Guide Pin Diameter:
    16.0 mm
    Guide Pin Shape:
    Round Type
    Clamp Arm Position:
    Same As The Port Side
    Clamping Height:
    Clamping Height LOW Type
    Auto Switch:
    Magnetic Field Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.3m, Apply Voltage :DC24V
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Magnetic Field Resistant Auto Switch/Small Auto Switch Mounting Clamping Height LOW Type
