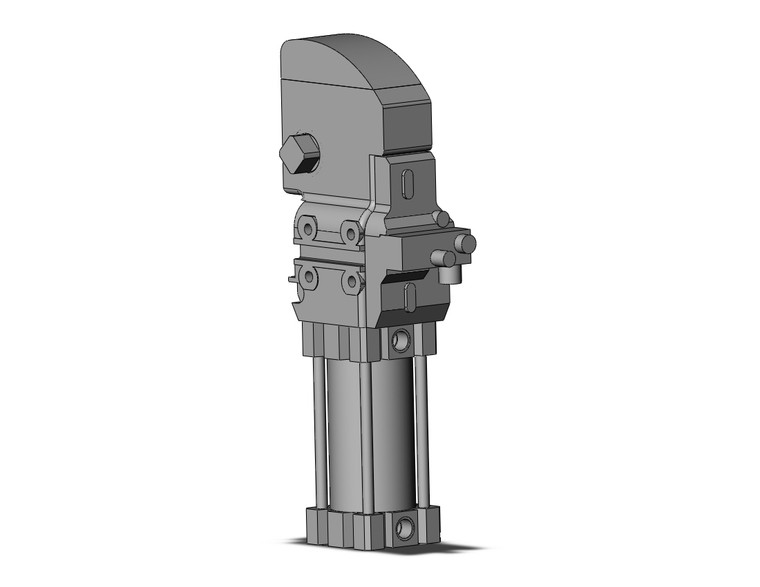

SMC CKZT40TN-105P Clamp Cylinder

SMC CKZT40TN-105P CKZT Series Power Clamp Cylinder Base Type Bore Size

SMC
SKU:
CKZT40TN-105P
Availability:
Factory stock
$436.30
Condition:
New
Current Stock:
Description

CKZT Series Power Clamp Cylinder Base Type Bore Size

  • Lightweight, Compact; Weight: 1.6 kg; Width: 54 mm, Height: 265.9 mm;
  • High clamping force; Clamping force: 1200 N (Arm length: 100 mm, 0.5 MPa pressure);
  • Force amplification with a toggle mechanism and lock function;
  • Spatter-proof construction;
  • Equipped with a proximity switch that can be used in welding magnetic fields;
  • A model with a manually operated handle (lock specification) is available
    • Additional Information
    Bore Size:
    ?40
    Cylinder Port:
    NPT
    Arm Opening Angle:
    105°
    Proximity Switch:
    P&F
    Top Cover Material:
    Rubber Cover(Equivalent To UL94 Standard V0: Flame Resistant)
