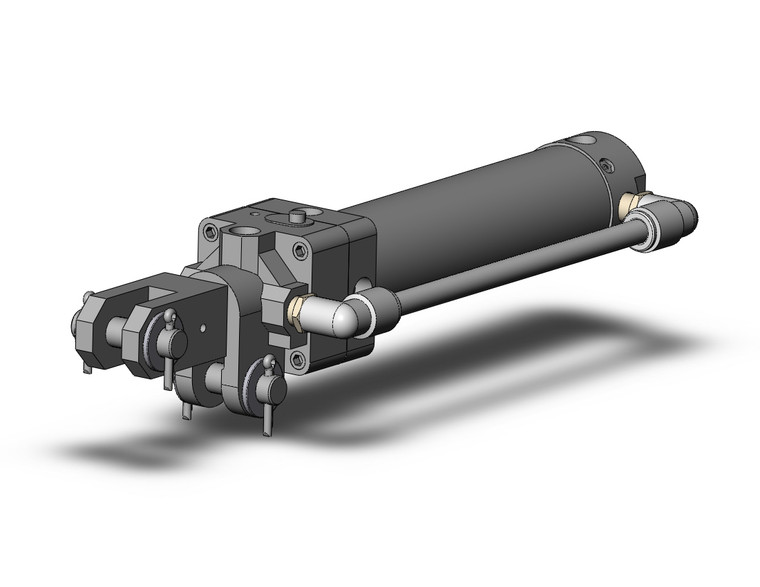

SMC CLK2GA32TN-100Y-F4 CLK2 Series Clamp Cylinder With Lock With Magnetic Field Resistant Auto Switch Band Mounting Compliant
SMC
$335.00
The SMC CLK2GA32TN-100Y-F4 is a high-performance clamp cylinder designed for optimal efficiency and reliability. This model features a single-directional lock, allowing it to maintain a clamped or unclamped state even when air supply pressure drops or residual pressure is released. Its innovative design includes a magnetic field resistant auto switch and band mounting compliance, ensuring seamless integration into various systems. The built-in cushion valve and plug eliminate overhang from the tube cover, enhancing operation efficiency. Ideal for applications requiring precise clamping control, this clamp cylinder is engineered to deliver consistent performance in demanding environments.
- Built-in Standard Magnet Type:
- Built-in Standard Magnet Type
- Clevis Width:
- 32:12 mm, 40· 50· 63:16.5 mm
- Bore Size:
- Bore Size 32 mm
- Port Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 100 mm
- Cylinder Stroke:
- Double Knuckle Joint M6 Without Tap
- Option:
- None
- Locking Direction:
- Extension Locking
- Port/Bypass Piping Position:
- Port Position:Top
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
