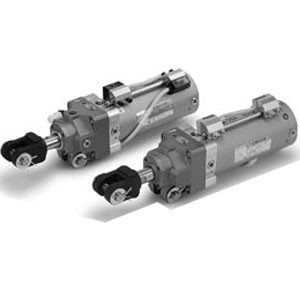

SMC CLK2GB50TN-50YABD-B CLK2G/CLK2P Series Clamp Cylinder With Lock With Magnetic Field Resistant Auto Switch Rod Mounting
SMC
$418.00
The SMC CLK2GB50TN-50YABD-B Clamp Cylinder is a versatile and reliable component from the CLK2G/CLK2P Series, designed to enhance your industrial applications. This clamp cylinder features a lock mechanism that ensures the clamped or unclamped state is maintained even when air supply pressure drops or residual pressure is released, thanks to its single-directional lock. Its magnetic field resistant auto switch rod mounting provides added durability and precision in operation. Additionally, the built-in cushion valve and plug eliminate overhang from the tube cover, significantly increasing operation efficiency. Ideal for environments where maintaining consistent clamping force is crucial, this clamp cylinder is engineered to deliver superior performance and reliability.
- Type:
- Built-In Standard Magnet Type With Magnetic Field Resistant Auto Switch
- Clevis Width:
- 19.5 mm
- Bore Size:
- Bore Size 50 mm
- Port Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 50 mm
- Cylinder Stroke:
- Double Knuckle Joint M6 With Tap
- Option:
- Limit Switch Mounting Base+Dog Fitting
- Locking Direction:
- Retraction Locking
- Port/Bypass Piping Position:
- Port Position:Top
- Switch Mounting Rod Position:
- Top/None
- Auto Switch:
- Without Auto Switch Built-in Magnet Without Switch Mounting Rod
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
