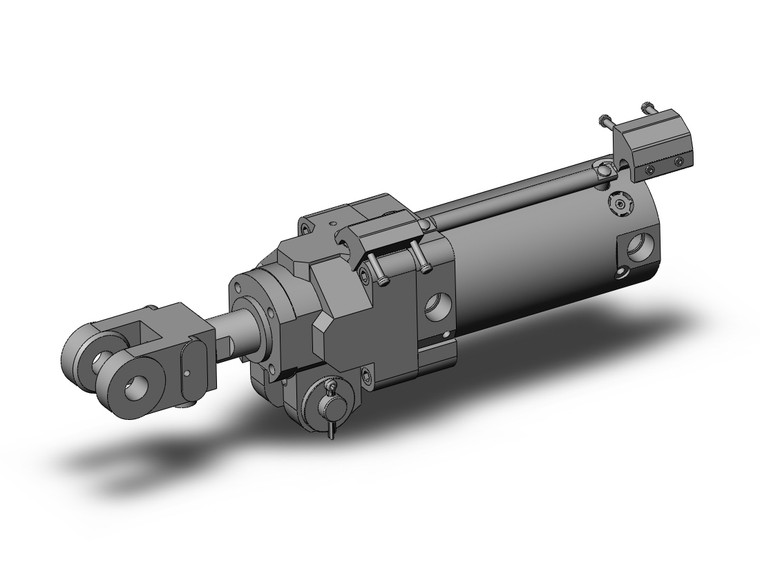

SMC CLK2PA50TF-50Y-B3R-P79WSE CLK2G/CLK2P Series Clamp Cylinder With Lock With Magnetic Field Resistant Auto Switch Rod Mounting
SMC
$581.10
The SMC CLK2PA50TF-50Y-B3R-P79WSE is a high-performance clamp cylinder from the CLK2G/CLK2P Series, designed to maintain a clamped or unclamped state even when air supply pressure drops or residual pressure is released, thanks to its single-directional lock feature. This innovative design enhances operational efficiency by eliminating overhang from the tube cover, incorporating a built-in cushion valve and plug. Additionally, it is equipped with a magnetic field resistant auto switch rod mounting, ensuring reliable performance in various industrial applications. Ideal for environments where maintaining consistent clamping force is critical, this clamp cylinder offers durability and precision.
- Type:
- Built-In Strong Magnet Type With Magnetic Field Resistant Auto Switch
- Clevis Width:
- 16.5 mm
- Bore Size:
- Bore Size 50 mm
- Port Type:
- G
- Cylinder Stroke:
- Standard Stroke 50 mm
- Cylinder Stroke:
- Double Knuckle Joint M6 Without Tap
- Option:
- None
- Locking Direction:
- Retraction Locking
- Port/Bypass Piping Position:
- Port Position:Right
- Switch Mounting Rod Position:
- Right
- Auto Switch:
- Magnetic Field Resistant 2-color Indicator, Reed Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.3m, Apply Voltage :DC24V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
