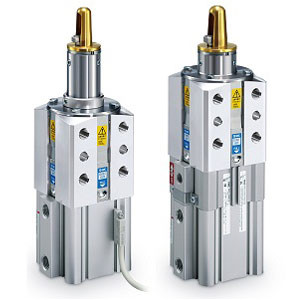

SMC CLKQGDA50TN-127RALZ C(L)KQG Series Pin Clamp Cylinder Built-in Standard Magnet
SMC
$699.95
The SMC CLKQGDA50TN-127RALZ C(L)KQG Series Pin Clamp Cylinder is designed with a built-in standard magnet, offering enhanced functionality and versatility for your industrial needs. This innovative cylinder features a compact magnetic field resistant auto switch (D-P3DWA), providing improved system design flexibility. It can be mounted on four different surfaces, with the capability to accommodate two auto switches on the same surface, while the protrusion of the auto switch has been reduced by 5 mm for a more streamlined installation. The cylinder allows for direct mounting and includes an adjustable height feature for precise clamping of workpieces. With 55 types of guide pins available, this pin clamp cylinder is engineered to meet a wide range of application requirements, ensuring reliable performance and adaptability in various settings.
- With Lock On The Clamp Side:
- With Lock
- Model:
- Built-in Standard Magnet Type
- Body Shape:
- D Series
- Mounting Surface (Viewed From Top):
- Parallel Side To Port
- Bore Size:
- Bore Size 50 mm
- Thread Type:
- NPT
- Guide Pin Diameter:
- 12.7 mm
- Guide Pin Shape:
- Round Type
- Clamp Arm Position (Clockwise Viewed From Top):
- Same As The Port Side
- Clamping Height:
- Body Shape D:LOW Type(60 mm)
- Shim:
- Without Shims
- Auto Switch:
- Without Auto Switch (Built-In Magnet)
- Number Of Auto Switches:
- 2 pcs. Or None
