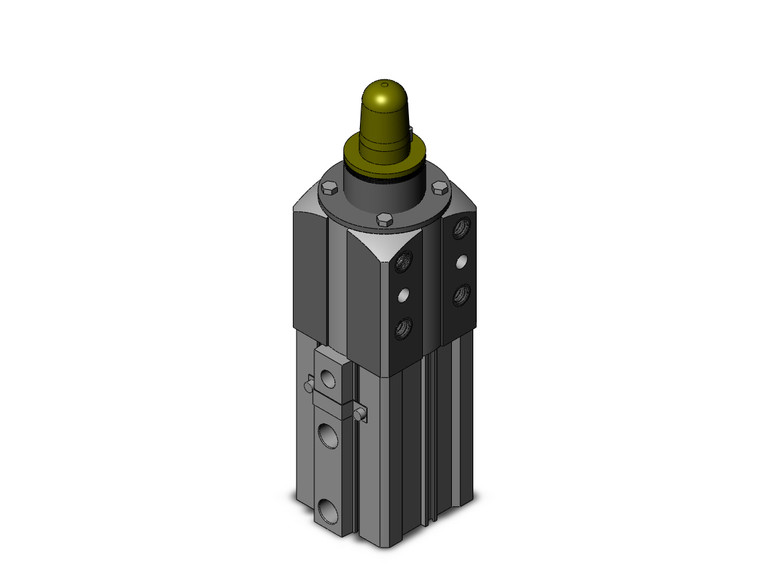

SMC CLKQPDA50-248RCLS Cylinder, Pin Clamp

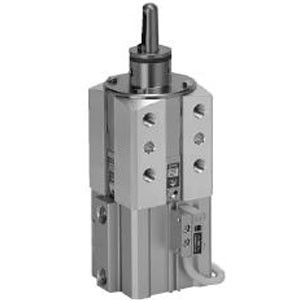

SMC CLKQPDA50-248RCLS CKQD/CLKQD Series Pin Clamp Cylinder D series

SMC
SKU:
CLKQPDA50-248RCLS
$757.90
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CKQD/CLKQD Series Pin Clamp Cylinder D series

  • Positioning and clamping at one time;
  • Compatible with a broad range of workpiece configurations. (55 types of guide pins);
  • 4 body types for a broad range of installation conditions;
  • The height of clamping position according to a workpiece is selectable
    • Additional Information
    With Lock On The Clamp Side:
    With Lock
    Type:
    Built-In Strong Magnet Type With Magnetic Field Resistant Auto Switch
    Mounting Surface Position:
    Parallel Side To Port
    Port Thread Type:
    Rc
    Guide Pin Diameter:
    24.8 mm
    Guide Pin Shape:
    Round Type
    Clamp Arm Position:
    180 Deg From The Port Side
    Clamping Height:
    LOW Type(60 mm)
    Shim:
    With 3 mm Shims
    Auto Switch:
    Without Auto Switch (Built-In Magnet)
    Number Of Auto Switches:
    2 pcs. Or None
