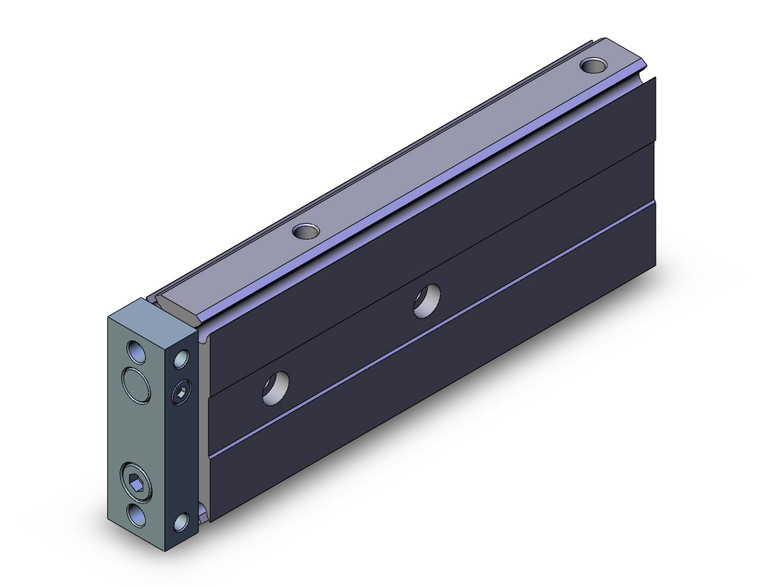

SMC CXSJL15-75-M9NMAPC CXSJ Series Dual Rod Cylinder Compact Type
SMC
$296.75
The SMC CXSJL15-75-M9NMAPC CXSJ Series Dual Rod Cylinder Compact Type is engineered for efficiency and versatility. This advanced cylinder features a more compact body compared to the traditional CXS dual rod cylinder series, making it ideal for applications where space is at a premium. With the ability to confirm auto switches from four different directions, this cylinder offers enhanced flexibility and ease of use. Additionally, axial piping is available, providing further customization options. Designed with a bore size of 6 and 10, this compact cylinder is perfect for a wide range of industrial applications, ensuring reliable performance and precision.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 15 mm
- Port Thread Type:
- M Thread( 6 25),Rc1/8( 32)
- Piping:
- Standard 6 32
- Cylinder Stroke:
- Standard Stroke 75 mm
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
