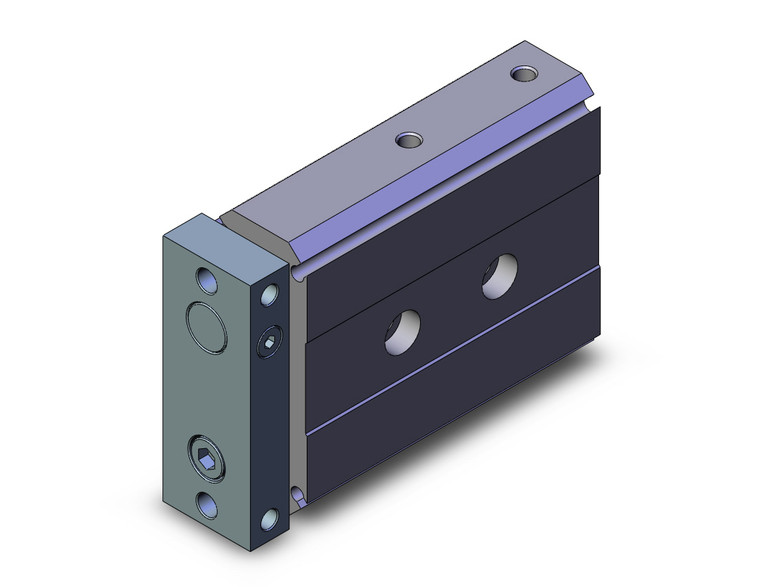

SMC CXSJL25-20-M9B CXSJ Series Dual Rod Cylinder Compact Type
SMC
$262.35
The SMC CXSJL25-20-M9B CXSJ Series Dual Rod Cylinder Compact Type is engineered for efficiency and versatility. This model boasts a more compact body compared to the traditional CXS dual rod cylinder series, making it an ideal choice for applications where space is at a premium. The innovative design allows for auto switch confirmation from four different directions, enhancing usability and convenience. Additionally, axial piping is available, providing flexibility in installation and operation. With bore sizes of 6 and 10, this dual rod cylinder is perfect for a variety of industrial applications, offering reliable performance in a streamlined package.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 25 mm
- Port Thread Type:
- M Thread( 6 25),Rc1/8( 32)
- Piping:
- Standard 6 32
- Cylinder Stroke:
- Standard Stroke 20 mm
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
