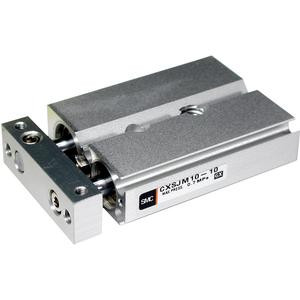

SMC CXSJL6-40-M9B CXSJ Series Dual Rod Cylinder Compact Type
SMC
$221.20
The SMC CXSJL6-40-M9B CXSJ Series Dual Rod Cylinder Compact Type is engineered for efficiency and versatility. This advanced cylinder features a more compact body compared to the traditional CXS dual rod cylinder series, making it ideal for applications where space is at a premium. With the ability to confirm auto switches from four different directions, this cylinder offers enhanced flexibility and ease of use. Additionally, axial piping options are available, further expanding its adaptability. Available in bore sizes of 6 and 10, the CXSJL6-40-M9B is designed to meet the demands of various industrial applications with precision and reliability.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 6 mm
- Port Thread Type:
- M Thread( 6 25),Rc1/8( 32)
- Piping:
- Standard 6 32
- Cylinder Stroke:
- Standard Stroke 40 mm
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
