Description

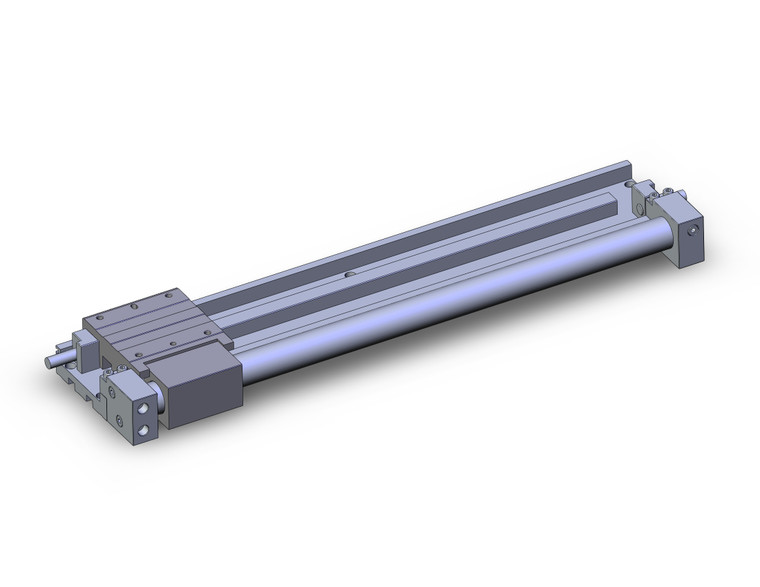

Rodless Cylinder, Cy1F, Magnetically Coupled - Low Profile Guide
The Cy1F Low Profile Rodless Cylinder - Magnetically Coupled Uses Industrial Strength Magnets Located In The Piston And External Carriage To Form A Single Unit That Will Travel When Actuated With Air Pressure. It Is Installed With A Single Axis Internal Linear Guide To Reduce Its Profile As Much As 29% And Up To 50% Weight Reduction Compared To The Cy1H Series.
- Bore Sizes: 10, 15, 25 Mm- Stroke Lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 Mm
- Maximum Stroke Lengths: 500 Mm (10 Bore), 750 Mm (15 Bore), 1200 Mm (25 Bore)
- Minimum Operating Pressure: 0.2 Mpa (29 Psi)
- Speed: 50 ~ 500 Mm/Sec.
-
