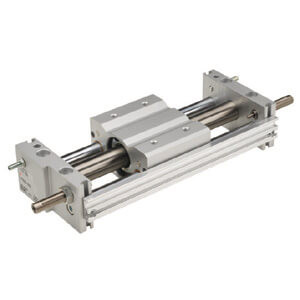

SMC CY1S10-250Z-M9BWL CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type
SMC
$311.35
The SMC CY1S10-250Z-M9BWL is a part of the CY1S-Z Series, featuring a magnetically coupled rodless cylinder slider type design. This innovative product offers a weight reduction of up to 15%, now weighing only 0.96 kg compared to the previous model's 1.13 kg. Its overall length has been shortened by 15 mm, measuring 240 mm instead of the former 255 mm, making it more compact and efficient. The cylinder boasts improved durability, thanks to the lub-retainers mounted on both the internal and external surfaces of the cylinder tube, ensuring optimal lubrication maintenance. Additionally, the adjustment bolt enhances stroke accuracy and repeatability, making it a reliable choice for precision applications.
- Piping:
- Both Sides Piping Type
- Bore Size:
- Bore Size 10 mm
- Port Thread Type:
- M Thread,Rc
- Cylinder Stroke:
- Standard Stroke 250 mm
- Adjustment Type:
- With Adjusting Bolt
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
