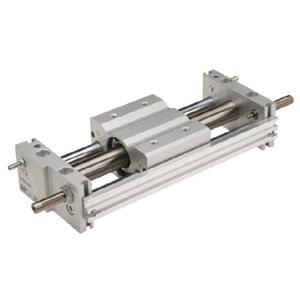

SMC CY1S40-1000BZ-M9BASBPC CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type
SMC
$1,274.60
The SMC CY1S40-1000BZ-M9BASBPC is a part of the CY1S-Z Series, featuring a magnetically coupled rodless cylinder slider type design. This model boasts a weight reduction of up to 15%, now weighing 0.96 kg compared to the previous 1.13 kg. Its overall length has been shortened by 15 mm, measuring 240 mm instead of the former 255 mm. Enhanced durability is achieved through the inclusion of lub-retainers on both the internal and external surfaces of the cylinder tube, ensuring consistent lubrication. Additionally, an adjustment bolt is incorporated to improve stroke accuracy and repeatability, making it a reliable choice for precision applications.
- Piping:
- Both Sides Piping Type
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- M Thread,Rc
- Cylinder Stroke:
- Standard Stroke 1000 mm
- Adjustment Type:
- With Shock Absorbers(2 Pcs.)
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
