SMC

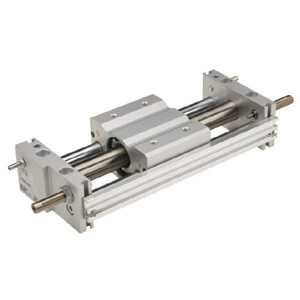

SMC CY1SG15-200BZ-M9NL CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type

(No reviews yet) Write a Review
SKU:
CY1SG15-200BZ-M9NL
MPN:
CY1SG15-200BZ-M9NL
Condition:
New
Piping:
Centralized Piping Type
Bore Size:
Bore Size 15 mm
Port Thread Type:
M Thread,Rc
Cylinder Stroke:
Standard Stroke 200 mm
Adjustment Type:
With Shock Absorbers(2 Pcs.)
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
  • SMC CY1SG15-200BZ-M9NL Cy1S, Magnet Coupled Rodless Cylinder
  • SMC CY1SG15-200BZ-M9NL CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type
$422.55

Description

CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type

  • Weight: Max. 15% reduced (0.96 kg: Existing model 1.13 kg);
  • Overall length: Max. 15 mm shortened (240 mm: Existing model 255 mm);
  • Improved durability;?Lub-retainers are mounted on the internal and external surfaces of;?the cylinder tube to maintain the lubrication;
  • Adjustment bolt improves stroke accuracy/repeatability
