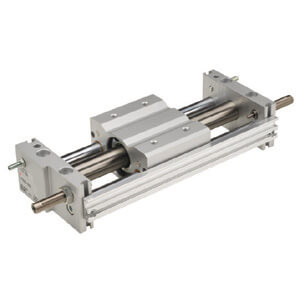

SMC CY1SG25TN-100Z CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type
SMC
$389.95
The SMC CY1SG25TN-100Z is a part of the CY1S-Z Series, featuring a magnetically coupled rodless cylinder slider type design. This advanced model offers a weight reduction of up to 15%, now weighing just 0.96 kg compared to the previous 1.13 kg model. Its overall length has been shortened by 15 mm, measuring 240 mm instead of the former 255 mm, making it more compact and efficient. Enhanced durability is achieved through the inclusion of lub-retainers on both the internal and external surfaces of the cylinder tube, ensuring optimal lubrication maintenance. Additionally, the adjustment bolt feature significantly improves stroke accuracy and repeatability, making this cylinder an ideal choice for precision applications.
- Piping:
- Centralized Piping Type
- Bore Size:
- Bore Size 25 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 100 mm
- Adjustment Type:
- With Adjusting Bolt
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
