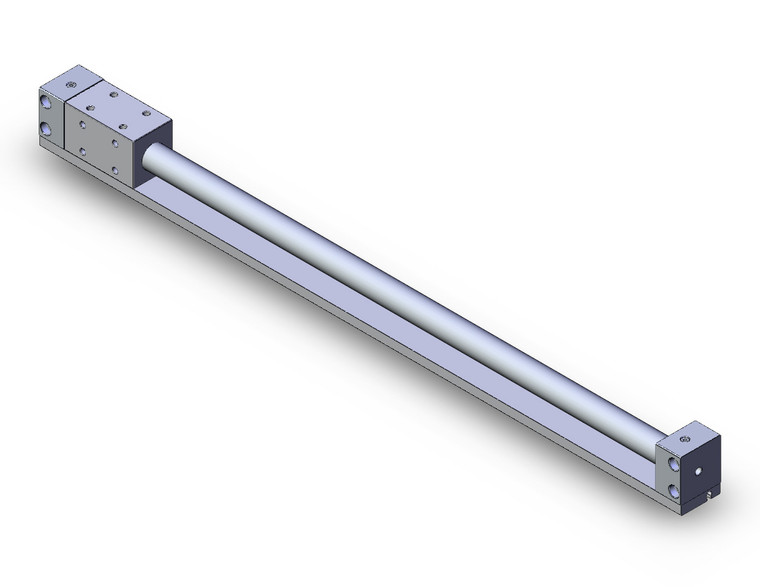

SMC CY3R15-400-A93L CY3R Series Magnetically Coupled Rodless Cylinder/Direct Mount Type
SMC
$294.25
The SMC CY3R15-400-A93L is a part of the CY3R Series, offering a magnetically coupled rodless cylinder with a direct mount type. This product represents a significant advancement over the previous CY1 Series, maintaining the same mounting dimensions while enhancing bearing performance and reducing sliding resistance. It comes equipped with both NPT and G thread options as standard, ensuring versatile compatibility for various applications. Ideal for those seeking improved efficiency and reliability in their pneumatic systems, the CY3R15-400-A93L is engineered to deliver superior performance in demanding environments.
- Piping:
- Standar
- Bore Size:
- Bore Size 15 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 400 mm
- Switch Rail:
- With Switch Rail
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
