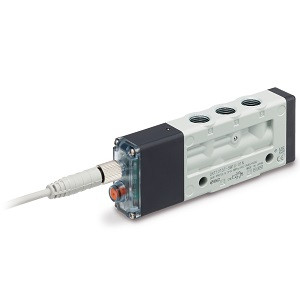

SMC DXT1215T-5W3U-01-X1 DXT1215 Series High Speed Response Pilot Operated Solenoid Valve

SMC DXT1215T-5W3U-01-X1 DXT1215 Series High Speed Response Pilot Operated Solenoid Valve

SMC
SKU:
DXT1215T-5W3U-01-X1
$99.86
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

DXT1215 Series High Speed Response Pilot Operated Solenoid Valve

  • High speed ON: 2.5 ms, OFF: 3 ms;
  • Large flow rate?330?L/min(ANR); ?When the inlet side is 0.6 MPa, and the differential pressure is 0.1 MPa;
  • Enclosure?IP67;
  • Power saving: 1.5 W (With power-saving circuit);
  • Select from 3 or 5 port.?; ?3-port type: Made to order (-X1);
  • Compact; Overall length: 91.5 mm, Width: 16 mm, Height: 34 mm
    • Additional Information
    Coil Spec.:
    With Power Saving Circuit
    Rated Voltage:
    DC24V
    Electrical Entry:
    M8 Connector With Connector Cable Cable Length 1000 mm
    With Light Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor(Non-polar Type)
    4(A)/2(B)Port Port Size Thread Piping:
    1/8
    Thread Type:
    Rc
    Made To Order:
    3-Port Specification
