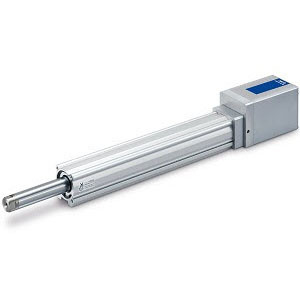

SMC Electric Actuator with Integrated Controller - Guided Rod Type | EQYG32MHH-200B-B6 | 200mm Stroke
SMC
$1,380.00
The SMC EQYG32MHH-200B-B6 rod-type electric actuator with integrated controller delivers precision linear motion control for demanding industrial applications. This all-in-one solution combines a high-performance motor, battery-less absolute encoder, and intelligent controller in a compact package that matches standard pneumatic cylinder mounting dimensions.
Designed as a direct replacement for pneumatic cylinders, this actuator provides superior control over speed, acceleration, deceleration, and positioning while eliminating compressed air requirements. The integrated controller operates in solenoid mode with two or three position stops, requiring no complex programmingsimply configure operational parameters through user-friendly software.
Featuring optimized motor control that reduces heat generation and power consumption, this actuator achieves significant energy savings in continuous operation. The battery-less absolute encoder maintains position data even during power loss, eliminating time-consuming homing routines. M12 connectors ensure reliable connections in harsh industrial environments, while parallel I/O and IO-Link communication options provide flexible integration with PLCs and industrial networks.
- Product Code:
- EQYG32MHH-200B-B6
- Series:
- EQ (Electric Actuator with Integrated Controller)
- Stroke Length:
- 200mm
- Bore/Body Size:
- 32mm
- Motor Type:
- High-Performance Stepper Motor
- Encoder:
- Battery-less Absolute Encoder
- Power Supply:
- 24VDC
- Communication:
- Parallel I/O, IO-Link Protocol
- Control Modes:
- Single Solenoid, Double Solenoid, Closed Center
- Positioning:
- 2 or 3 Position Stops
- Connector Type:
- M12 Metal Cable Connectors
- Environmental Rating:
- IP40 (Standard)
- Operating Temperature:
- 0 to 40°C
- Weight:
- 6.18 KG
- Country of Origin:
- Japan
