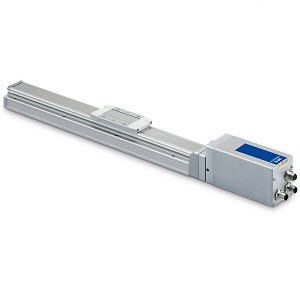

SMC Electric Actuator with Integrated Controller - Rodless Slide Type | EQFS25HC-200N-B6 | 200mm Stroke
SMC
$850.00
The SMC EQFS25HC-200N-B6 is a rodless slide-type electric actuator featuring an integrated motor controller, designed to simplify industrial automation while reducing energy consumption. This advanced actuator eliminates the need for separate controllers, reducing installation space by up to 40% and significantly decreasing wiring complexity.
Engineered with a high-performance stepper motor and battery-less absolute encoder, this actuator provides precise position control without requiring return-to-origin operations after power cycling. The integrated controller mimics pneumatic cylinder operation with two end-of-stroke positions plus one user-defined intermediate position, making it ideal for applications transitioning from pneumatic to electric actuation.
Optimized motor specifications and advanced control algorithms deliver up to 60% reduction in CO2 emissions compared to conventional electric actuators. The M12 metal cable connectors provide industrial-grade durability, while IO-Link protocol support enables seamless integration with modern automation networks. Configuration is simplified through free software or the JX-T1 handheld pendant, allowing setup in three easy steps without complex programming.
- Product Code:
- EQFS25HC-200N-B6
- Series:
- EQ (Electric Actuator with Integrated Controller)
- Stroke Length:
- 200mm
- Bore/Body Size:
- 25mm
- Motor Type:
- High-Performance Stepper Motor
- Encoder:
- Battery-less Absolute Encoder
- Power Supply:
- 24VDC
- Communication:
- Parallel I/O, IO-Link Protocol
- Control Modes:
- Single Solenoid, Double Solenoid, Closed Center
- Positioning:
- 2 or 3 Position Stops
- Connector Type:
- M12 Metal Cable Connectors
- Environmental Rating:
- IP40 (Standard)
- Operating Temperature:
- 0 to 40°C
- Weight:
- 2.19 KG
- Country of Origin:
- Japan
