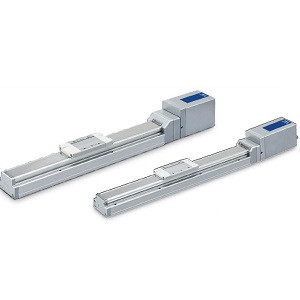

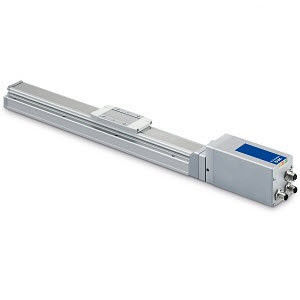

SMC Electric Actuator with Integrated Controller - Rodless Slide Type | EQFS25HA-150N-B6 | 150mm Stroke
SMC
$835.00
Product Description
The SMC EQFS25HA-150N-B6 is a rodless slide-type electric actuator featuring an integrated motor controller, designed to simplify industrial automation while reducing energy consumption. This advanced actuator eliminates the need for separate controllers, reducing installation space by up to 40% and significantly decreasing wiring complexity.
Engineered with a high-performance stepper motor and battery-less absolute encoder, this actuator provides precise position control without requiring return-to-origin operations after power cycling. The integrated controller mimics pneumatic cylinder operation with two end-of-stroke positions plus one user-defined intermediate position, making it ideal for applications transitioning from pneumatic to electric actuation.
Optimized motor specifications and advanced control algorithms deliver up to 60% reduction in CO2 emissions compared to conventional electric actuators. The M12 metal cable connectors provide industrial-grade durability, while IO-Link protocol support enables seamless integration with modern automation networks. Configuration is simplified through free software or the JX-T1 handheld pendant, allowing setup in three easy steps without complex programming.
Key Features
- Integrated motor controller eliminates external controller requirement
- Battery-less absolute encoder maintains position without homing
- Up to 60% CO2 emission reduction vs. conventional actuators
- Simplified setup - No complex programming required
- IO-Link and parallel I/O communication support
- M12 industrial connectors for reliable connections
- Same mounting as LEFS series for easy retrofits
- Space-saving rodless slide design
Applications
- Assembly Operations
- Material Transfer Systems
- Pick and Place Applications
- Pressing and Clamping Operations
- Packaging Equipment
- Dispensing Systems
- Testing and Inspection Equipment
- Automotive Manufacturing
- Electronics Assembly
- Food and Beverage Processing
- Pharmaceutical Production
- Battery Manufacturing
- Semiconductor Equipment
- General Factory Automation
- Product Code:
- EQFS25HA-150N-B6
- Series:
- EQ (Electric Actuator with Integrated Controller)
- Stroke Length:
- 150mm
- Bore/Body Size:
- 25mm
- Motor Type:
- High-Performance Stepper Motor
- Encoder:
- Battery-less Absolute Encoder
- Power Supply:
- 24VDC
- Communication:
- Parallel I/O, IO-Link Protocol
- Control Modes:
- Single Solenoid, Double Solenoid, Closed Center
- Positioning:
- 2 or 3 Position Stops
- Connector Type:
- M12 Metal Cable Connectors
- Environmental Rating:
- IP40 (Standard)
- Operating Temperature:
- 0 to 40°C
- Weight:
- 2.05 KG
- Country of Origin:
- Japan
