Description

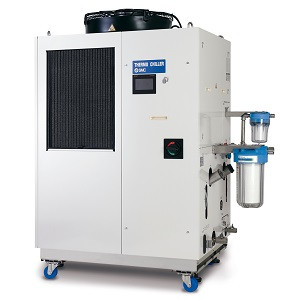

HRL, Dual Channel Chiller for Lasers
The HRL is a temperature control device featuring two independent cooling channels in one package. This thermo chiller is designed to cool the optical head and oscillator of a laser processing system. Considerable space savings can be realized compared to a two chiller solution. All operations can be managed from a single touch panel. A triple inverter controls power consumption of the fan, pump, and compressor for optimal energy savings. The heating function uses waste heat from the refrigerant discharge instead of a separate electric heater to improve efficiency and reliability. The HRL is copper free and suitable for DI water, including a DI filter and electrical conductivity control kit. Additional standard features include a 5 m particle filter, earth leakage breaker, and casters for mobility.
- Cooling capacity: CH1= 9, 19 or 26kW (oscillator); CH2= 1kW (optical system)- Power Supply 20 : 200VAC/50 Hz or 200-230VAC/60 Hz, 3-phase
- Power Supply 40 : 380-415VAC (50/60 Hz) or 460-480VAC (60 Hz), 3-phase
- Temperature set range: CH1 = 15 to 25 C, CH2 = 20 to 40 C
- Temperature stability: CH1 = 0.1 C, CH2 = 0.5 Ethernet Modbus
-
