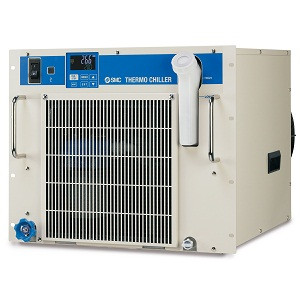

SMC HRR018-A-20-T Rack Mount Refrigeration Chiller

SMC HRR018-A-20-T HRR Series Thermo-chiller/Rack Mount Type Single-phase 200/230 VAC

SMC
SKU:
HRR018-A-20-T
Availability:
Factory Stock
$6,150.00
Condition:
New
Current Stock:
Description



This item has been discontinued due to refrigerant regulations. Find alternate low global warming potential chillers here.



SMC Customer Letter Regarding Refrigerant Regulations

HRR Series Thermo-chiller/Rack Mount Type Single-phase 200/230 VAC

;

  • Operable without the need to remove the unit from the rack; Front access: Simple to control, service, and maintain with all filters and drainage accessible via the front panel;
  • Space saving: Multiple chillers can be mounted to a 19-inch rack.;
  • Cooling capacity: 1.1/1.2/1.8/2.4/3.0/5.1 kW (60 Hz);
  • Temperature stability: ±0.1;
  • Global power supply:; Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz); Single-phase 200 to 230 VAC (50/60 Hz)

    The SMC HRR018-A-20-T HRR Series Thermo-chiller is a versatile and efficient cooling solution designed for rack mount applications. This single-phase unit operates at 200/230 VAC and offers the convenience of front access, allowing for easy control, service, and maintenance without the need to remove it from the rack. Its space-saving design enables multiple chillers to be mounted on a standard 19-inch rack, making it ideal for environments where space is at a premium. With a cooling capacity ranging from 1.1 to 5.1 kW (60 Hz) and a temperature stability of ±0.1, this thermo-chiller ensures precise and reliable temperature control. Additionally, it supports a global power supply, accommodating single-phase 100 VAC (50/60 Hz), 115 VAC (60 Hz), and 200 to 230 VAC (50/60 Hz) inputs, making it suitable for a wide range of applications worldwide.

    • Additional Information
    Cooling Capacity:
    Cooling Capacity 1600W/1800W?50/60Hz?
    Cooling Method:
    Air-cooled Refrigeration
    Pipe Thread Type:
    Rc
    Power Supply:
    Single-phase 200 to 230 VAC (50/60 Hz)
    Option 1:
    High-pressure Pump Mounted
    Option 2:
    None
