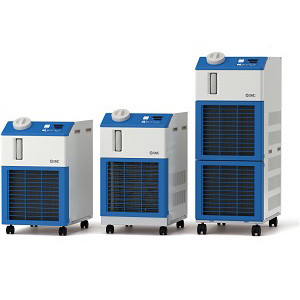

SMC HRSC012-WN-20 Water-Cooled Thermo-Chiller - 1.3 kW CO2, Remote + Contact I/O | Factory Automation
SMC
$5,810.00
The SMC HRSC012-WN-20 is a water-cooled thermo-chiller with remote control and contact I/O delivering 1.3 kW cooling using CO2 refrigerant (GWP 1). PID temperature control with ±0.1°C stability, 5-40°C range. Water-cooled refrigeration connects to facility water for space-efficient operation. NPT thread with Rc-NPT fitting. Single-phase 200-230 VAC (50/60Hz). Remote control with contact I/O enables automation system integration. Heating function, RS-232C/RS-485 communication, auto-restart, anti-freeze protection, multi-alarm monitoring. Compatible with tap water, deionized water, or 15% glycol solution. EPA, CARB, EU compliant. UL/CE certified.
- Series:
- HRSC
- Cooling Capacity (60Hz):
- 1300 W (1.3 kW)
- Heating Capacity (60Hz):
- 650 W
- Refrigerant:
- R744 (CO2)
- GWP:
- 1
- Cooling Method:
- Water-cooled refrigeration
- Temperature Control:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Power Supply:
- 1-phase 200-230 VAC (50/60Hz)
- Rated Current (50/60Hz):
- 3.1/3.2 A
- Power Consumption (50/60Hz):
- 0.5/0.6 kW
- Earth Leakage Breaker:
- 10 A / 30 mA
- Pump Type:
- Standard
- Pump Output:
- 200 W
- Rated Flow (50/60Hz):
- 7/7 L/min
- Max Flow (50/60Hz):
- 14/19 L/min
- Tank Capacity:
- Approx. 5 L
- Circulating Fluid:
- Water, 15% ethylene glycol aqueous solution
- Circulating Fluid Port:
- Rc1/2
- Pipe Thread Conversion:
- NPT (with Rc-NPT fitting)
- Facility Water Port:
- Rc3/8
- Required Facility Water Flow:
- 8 L/min
- Facility Water Pressure:
- 0.3 to 0.5 MPa
- Facility Water Temp Range:
- 10 to 40°C
- Noise Level (50/60Hz):
- 60/61 dB(A)
- Ambient Temperature:
- 5 to 40°C
- Ambient Humidity:
- 30 to 70% (no condensation)
- Max Altitude:
- 3000 m
- Installation:
- Indoor only
- Refrigerant Charge:
- 0.41 kg
- Weight (dry):
- Approx. 50 kg
- Communication:
- RS-232C, RS-485
- Remote Control:
- Yes
- Contact I/O:
- Yes
- Heating Function:
- Yes
- Auto Restart:
- Yes
- Anti-Freeze Protection:
- Yes
- Self-Diagnosis:
- Yes
- Compliance:
- EPA, CARB, EU F-gas
- Certifications:
- UL, CE
- Fluid Contact Materials:
- Stainless steel, Copper (brazing), Brass, Alumina ceramic, Carbon, PP, PE, POM, FKM, EPDM, PVC, SiC
