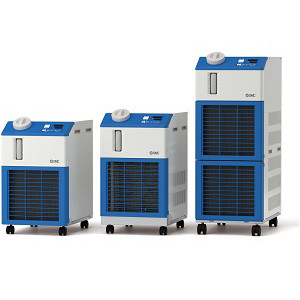

SMC HRSC030-AF-20-T Thermo-Chiller - 3.2 kW CO2, Remote Control, High-Pressure Pump | Process Cooling
SMC
$6,920.00
The SMC HRSC030-AF-20-T is a medium capacity air-cooled thermo-chiller with remote control and high-pressure pump delivering 3.2 kW cooling using CO2 refrigerant (GWP 1). PID-controlled ±0.1°C temperature stability, 5-40°C range. Air-cooled ?68 dB(A). NPT thread with Rc-NPT fitting. Single-phase 200-230 VAC (50/60Hz). High-pressure pump with remote control for external operation. Heating function, RS-232C/RS-485 communication, auto-restart, anti-freeze protection, alarm monitoring. Compatible with tap water, deionized water, or 15% glycol solution. Compact 377mm width. EPA, CARB, EU compliant. UL/CE certified.
- Series:
- HRSC
- Cooling Capacity (60Hz):
- 3200 W (3.2 kW)
- Heating Capacity (60Hz):
- 640 W
- Refrigerant:
- R744 (CO2)
- GWP:
- 1
- Cooling Method:
- Air-cooled refrigeration
- Temperature Control:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Power Supply:
- 1-phase 200-230 VAC (50/60Hz)
- Rated Current (50/60Hz):
- 8.6/8.7 A
- Power Consumption (50/60Hz):
- 1.3/1.4 kW
- Earth Leakage Breaker:
- 15 A / 30 mA
- Pump Type:
- High Pressure
- Pump Output:
- 550 W
- Rated Flow (50/60Hz):
- 27/29 L/min
- Max Flow (50/60Hz):
- 34/40 L/min
- Tank Capacity:
- Approx. 5 L
- Circulating Fluid:
- Water, 15% ethylene glycol aqueous solution
- Circulating Fluid Port:
- Rc1/2
- Pipe Thread Conversion:
- NPT (with Rc-NPT fitting)
- Noise Level (50/60Hz):
- 62/65 dB(A)
- Ambient Temperature:
- 5 to 40°C
- Ambient Humidity:
- 30 to 70% (no condensation)
- Max Altitude:
- 3000 m
- Installation:
- Indoor only
- Refrigerant Charge:
- 0.48 kg
- Weight (dry):
- Approx. 73 kg
- Communication:
- RS-232C, RS-485
- Remote Control:
- Yes
- Contact I/O:
- No
- Heating Function:
- Yes
- Auto Restart:
- Yes
- Anti-Freeze Protection:
- Yes
- Self-Diagnosis:
- Yes
- Compliance:
- EPA, CARB, EU F-gas
- Certifications:
- UL, CE
- Fluid Contact Materials:
- Stainless steel, Copper (brazing), Brass, Alumina ceramic, Carbon, PP, PE, POM, FKM, EPDM, PVC, SiC
