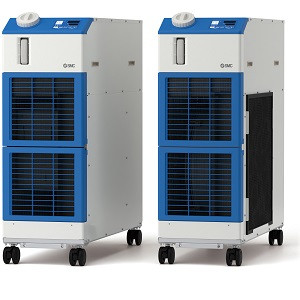

SMC HRSC090-WN-40-J Water-Cooled Thermo-Chiller - 9.1 kW CO2, Remote, Contact I/O, High Flow Pump | Industrial
SMC
$15,400.00
The SMC HRSC090-WN-40-J is a large capacity water-cooled thermo-chiller with remote control, contact I/O, and high flow pump delivering 9.1 kW cooling using CO2 refrigerant (GWP 1). PID-controlled ±0.1°C temperature stability, 5-40°C range. Water-cooled connects to facility water. NPT thread with Rc-NPT fitting. Three-phase 200-230 VAC (50/60Hz). High flow pump with remote control and contact I/O for automation. Heating function, RS-232C/RS-485 communication, auto-restart, anti-freeze protection, alarm monitoring. Compatible with tap water, deionized water, or 15% glycol solution. Large capacity with enhanced circulation. EPA, CARB, EU compliant. UL/CE certified.
- Series:
- HRSC
- Cooling Capacity (60Hz):
- 11000 W (11.0 kW)
- Refrigerant:
- R744 (CO2)
- GWP:
- 1
- Cooling Method:
- Water-cooled refrigeration
- Temperature Control:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Power Supply:
- 3-phase 200-230 VAC (50/60Hz)
- Pump Type:
- High Flow (with Auto Fluid Fill)
- Circulating Fluid:
- Water, 15% ethylene glycol aqueous solution
- Circulating Fluid Port:
- Rc1/2
- Pipe Thread Conversion:
- NPT (with Rc-NPT fitting)
- Noise Level (50/60Hz):
- ?68 dB(A)
- Ambient Temperature:
- 5 to 40°C
- Ambient Humidity:
- 30 to 70% (no condensation)
- Max Altitude:
- 3000 m
- Installation:
- Indoor only
- Communication:
- RS-232C, RS-485
- Remote Control:
- Yes
- Contact I/O:
- Yes
- Auto Fluid Fill (Option J):
- Yes
- Heating Function:
- Yes
- Auto Restart:
- Yes
- Anti-Freeze Protection:
- Yes
- Self-Diagnosis:
- Yes
- Compliance:
- EPA, CARB, EU F-gas
- Certifications:
- UL, CE
