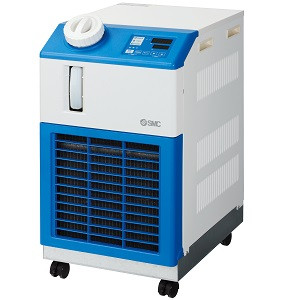

SMC HRSF012-A-20-M Air-Cooled Thermo-Chiller - 1.3 kW Cooling Capacity, R454C Low-GWP Refrigerant
SMC
$4,300.00
The SMC HRSF012-A-20-M is a medium capacity, air-cooled thermo-chiller from the HRSF Series, delivering 1.3 kW (1.0 kW at 50 Hz) of cooling capacity using environmentally friendly R454C refrigerant (GWP 146). This unit features PID-controlled temperature management with ±0.1°C stability across a settable range of 5 to 40°C. The air-cooled refrigeration circuit uses a single fan operating at 68 dB(A) or less, requiring no facility water connection. Piping connection: Rc (standard). Power supply: Single-Phase 200230 VAC (50/60 Hz). This configuration includes: DI Water Compatible Piping. Additional features include a heating function, RS-232C/RS-485 serial communication, power failure auto-restart, anti-freezing protection, and self-diagnosis with multiple alarm monitoring. Circulating fluid compatibility: tap water, deionized water (with M option), or 15% ethylene glycol aqueous solution. Compact 377 mm width shared across all medium-capacity models. Unit weight: approximately 43 kg (dry). Compliant with current and future US EPA, California CARB, and EU F-gas refrigerant regulations. UL and CE certified.
- Series:
- HRSF
- Cooling Capacity (60Hz):
- 1300 W (1.3 kW)
- Cooling Method:
- Air-cooled refrigeration
- Pipe Thread:
- Rc
- Power Supply:
- 1-ph 200-230 VAC (50/60 Hz)
- Refrigerant:
- R454C (GWP 146)
- Set Temp Range:
- 5-40°C
- Temp Stability:
- ±0.1°C
- Control:
- PID
- Dimensions:
- W377xH615xD500 mm
- Options:
- DI water piping
