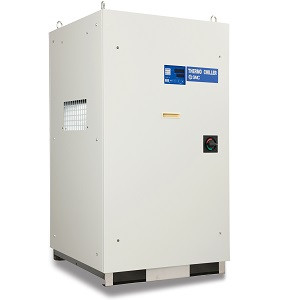

SMC HRSF150-WN-40-AKMT Water-Cooled Thermo-Chiller - 15.7 kW Cooling Capacity, R454C Low-GWP Refrigerant
SMC
$23,525.00
The SMC HRSF150-WN-40-AKMT is a large capacity, water-cooled thermo-chiller from the HRSF Series, delivering 15.7 kW (12.6 kW at 50 Hz) of cooling capacity using environmentally friendly R454C refrigerant (GWP 146). Designed for demanding industrial applications, this unit provides PID-controlled temperature management with ±0.1°C stability across a settable range of 5 to 40°C. The water-cooled refrigeration circuit connects to facility water for highly efficient heat rejection with a low sound level of approximately 60 dB(A). Power supply: 3-Phase 380480 VAC (50/60 Hz). Piping connection: NPT Thread (with Rc-NPT Fitting). This configuration includes: With Conversion Fitting, Outdoor Use (Snow Protection Hood), DI Water Compatible Piping, High-Pressure Pump. Features include a heaterless heating function using refrigerant discharge heat, RS-232C/RS-485 serial communication, IPX4 ingress rating for outdoor installation, power failure auto-restart, and comprehensive alarm monitoring. Circulating fluid compatibility: tap water, deionized water (with M option), or 15% ethylene glycol aqueous solution. Pump rated flow: 125 L/min at 0.50 MPa. Tank capacity: 42 L. Unit weight: approximately 195 kg (dry). Compliant with current and future US EPA, California CARB, and EU F-gas refrigerant regulations. UL and CE certified.
- Series:
- HRSF
- Cooling Capacity:
- 15700 W (15.7 kW)
- Cooling Method:
- Water-cooled refrigeration
- Pipe Thread:
- NPT (with Rc-NPT conversion fitting)
- Power Supply:
- 3-ph 380-415 VAC (50/60 Hz)
- Refrigerant:
- R454C (GWP 146)
- Temperature Range:
- 5-35°C
- Temperature Stability:
- ±0.1°C
- Control Method:
- PID
- Options:
- Anti-vibration, Conversion fitting set, DI water piping, High-pressure pump
