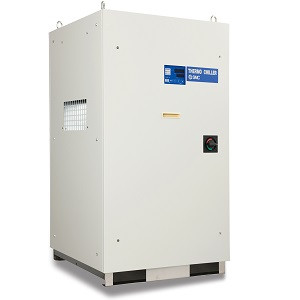

SMC HRSF200-W-40-T Water-Cooled Thermo-Chiller - 20.5 kW Cooling Capacity, R454C Low-GWP Refrigerant
SMC
$21,500.00
The SMC HRSF200-W-40-T is a large capacity, water-cooled thermo-chiller from the HRSF Series, delivering 20.5 kW (16.5 kW at 50 Hz) of cooling capacity using environmentally friendly R454C refrigerant (GWP 146). Designed for demanding industrial applications, this unit provides PID-controlled temperature management with ±0.1°C stability across a settable range of 5 to 40°C. The water-cooled refrigeration circuit connects to facility water for highly efficient heat rejection with a low sound level of approximately 60 dB(A). Power supply: 3-Phase 380480 VAC (50/60 Hz). Piping connection: Rc (standard). This configuration includes: High-Pressure Pump. Features include a heaterless heating function using refrigerant discharge heat, RS-232C/RS-485 serial communication, IPX4 ingress rating for outdoor installation, power failure auto-restart, and comprehensive alarm monitoring. Circulating fluid compatibility: tap water, deionized water (with M option), or 15% ethylene glycol aqueous solution. Pump rated flow: 125 L/min at 0.50 MPa. Tank capacity: 42 L. Unit weight: approximately 195 kg (dry). Compliant with current and future US EPA, California CARB, and EU F-gas refrigerant regulations. UL and CE certified.
- Series:
- HRSF
- Cooling Capacity (60Hz):
- 20500 W (20.5 kW)
- Cooling Method:
- Water-cooled refrigeration
- Pipe Thread:
- Rc
- Power Supply:
- 3-ph 380-415 VAC (50/60 Hz)
- Refrigerant:
- R454C (GWP 146)
- Set Temp Range:
- 5-35°C
- Temp Stability:
- ±0.1°C
- Control:
- PID
- Dimensions:
- Large capacity
- Options:
- High-pressure pump
